GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic

Name: GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTS53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTS53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Loose Tube Direct Buried Cable, Stranded Tube Direct Buried Cable, Non Metallic Direct Burial Wire


Type:	GYFTS53	Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C	Application:	Underground
Jacket Material:	PE	Fiber Count:	72 Cores

Type:	GYFTS53
Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C
Application:	Underground
Jacket Material:	PE
Fiber Count:	72 Cores

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic

GYFTS53 Fiber Optic Cable Stranded Loose Tube Non-Metallic Strength Member

Product description

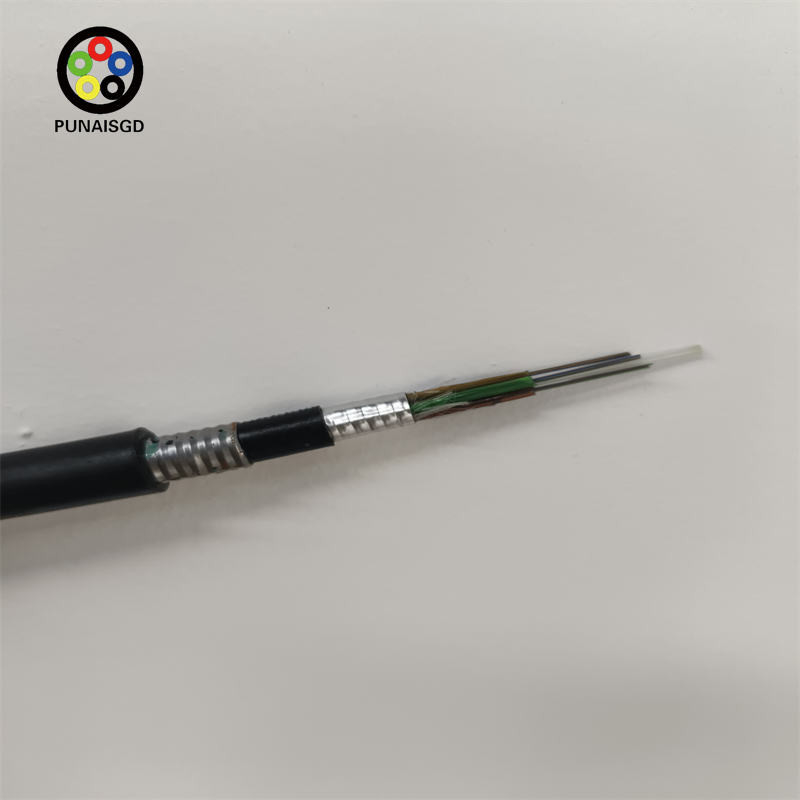

At the core of the GYFTS53 cable is an FRP rod that serves as the central strength member. The cable's

core is tightly wound with a loose tube and filler rope to form a compact, round structure, with

water-blocking filler filling any gaps. A plastic-coated steel strip is spirally wrapped and then sheathed in

polyethylene. The cable is finished by the longitudinal wrapping of a double-sided plastic-coated steel

strip, also extruded with a polyethylene sheath.

Product Details

Product Features

Ensures outstanding mechanical performance and temperature resistance.
Houses a high-strength, hydrolysis-resistant tube.
Incorporates a unique filling compound for fiber optic security.
Covered with a polyethylene sheath that resists UV exposure.
Capable of withstanding significant compression, suitable for duct and burial.
Anchored by a single steel wire for central strength.
Utilizes a special filling compound for fiber optic defense.
Fully filled to eliminate any air pockets.
Features a water-blocking tape to inhibit sinking during vertical installation.

Product Paraments

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter(mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Learn more about our company and factory

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic 3

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic 4

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic 5

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic 6

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic 7

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%).

There are total about 11-50 people in our factory.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and

make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
