Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GCYFY
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Model:
|
GCYFY
|
Jacket:
|
PE
|
Fibers:
|
G652D
|
Application:
|
Telecomunication
|
Color:
|
Blcack Or Customized
|
Use:
|
Duct /aerial
|
|
Model:
|
GCYFY
|
|
Jacket:
|
PE
|
|
Fibers:
|
G652D
|
|
Application:
|
Telecomunication
|
|
Color:
|
Blcack Or Customized
|
|
Use:
|
Duct /aerial
|
| Attribute | Value |
|---|---|
| Model | GCYFY |
| Jacket | PE |
| Fibers | G652D |
| Application | Telecommunication |
| Color | Black or customized |
| Use | Duct / Aerial |

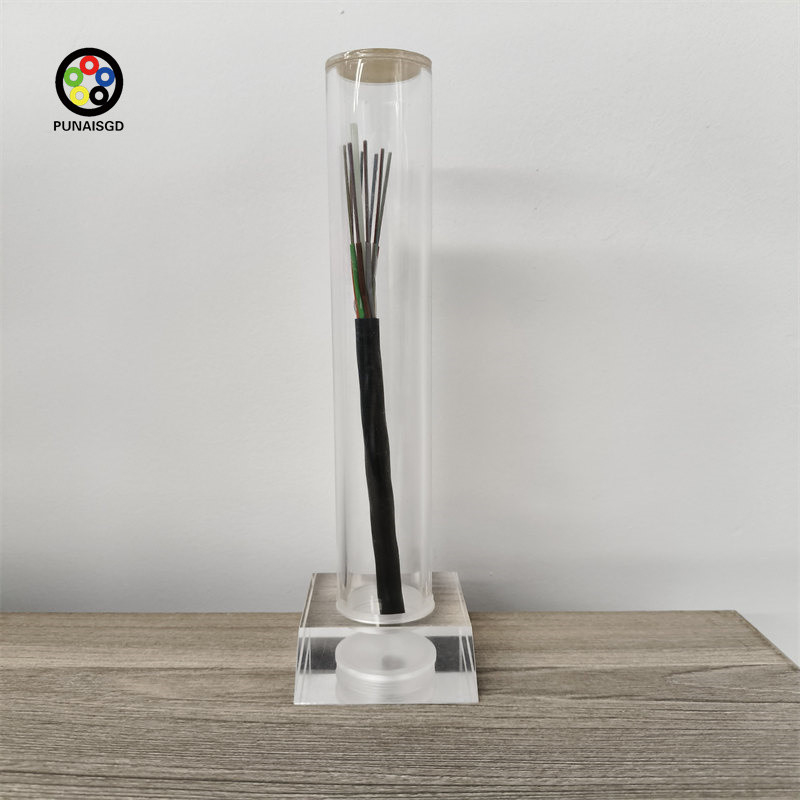

GCYFY outdoor fiber optic cable features a simple yet robust structure with Fiber Reinforced Polymer (FRP) as its primary reinforcement, offering high modulus strength. The outer casing utilizes Polybutylene Terephthalate (PBT) material, with a stranding technique that coils the casing around the FRP to form the cable core, finished with a protective sheath.
Model: GCYFY
Fiber Counts: 48 Cores (customizable)
Fiber Type: G652D/G657A1
Structure: Loose tube Stranded
Jacket material: HDPE
Cable Length: 1km~5km/roll
Operation Temperature: -40℃~+70℃
| Cores | Cores/tube | FRP diameter (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 12 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.3 | 0.5±0.1 | 6.8 | 38 |
We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a team of 11-50 professionals dedicated to quality fiber optic cable production.
We conduct pre-production sampling before mass production and perform final inspections before shipment to ensure consistent quality standards.
Yes, we can arrange shipping worldwide. If you don't have your own forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design requirements, and we'll provide competitive pricing and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
