Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GCYFY
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Model:
|
GCYFY
|
Jacket:
|
PE
|
Fibers:
|
G652D
|
Application:
|
Telecomunication
|
Color:
|
Blcack Or Customized
|
Use:
|
Duct /aerial
|
|
Model:
|
GCYFY
|
|
Jacket:
|
PE
|
|
Fibers:
|
G652D
|
|
Application:
|
Telecomunication
|
|
Color:
|
Blcack Or Customized
|
|
Use:
|
Duct /aerial
|
| Attribute | Value |
|---|---|
| Model | GCYFY |
| Jacket | PE |
| Fibers | G652D |
| Application | Telecommunication |
| Color | Black or customized |
| Use | Duct / Aerial |

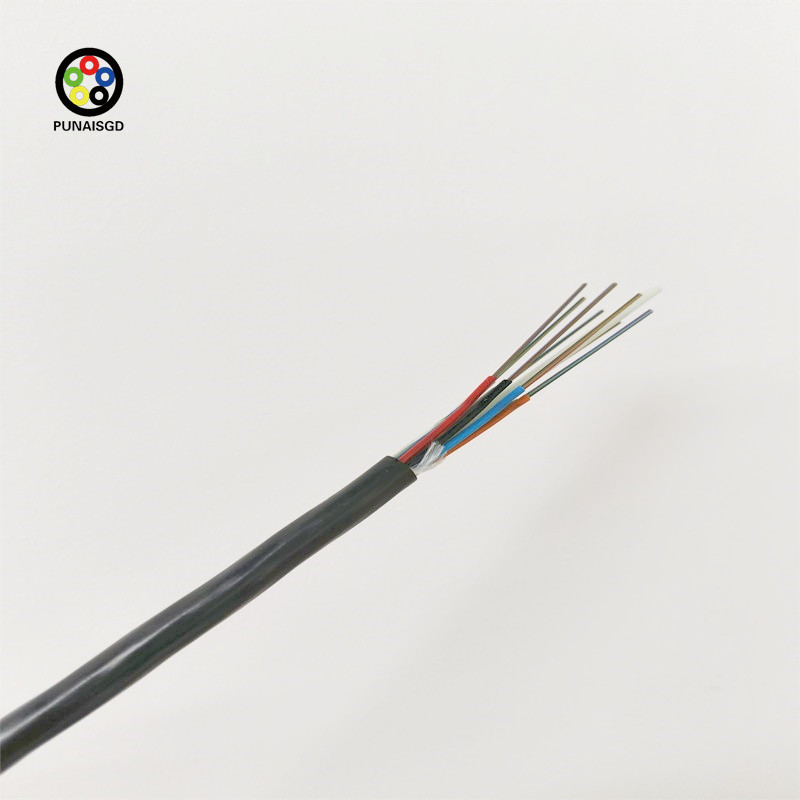

GCYFY Outdoor Fiber Optic Cable features a simple structural composition, integrating FRP as its main reinforcement with a high modulus. The outer casing, crafted from PBT, is of reduced size. The stranding technique is used to wind the casing or filler strip around the FRP, creating the cable's core, which is then sheathed.
Model: GCYFY
Fiber Counts: 48 Cores/customized
Fiber Type: G652D/G657A1
Structure: Loose tube Stranded
Jacket material: HDPE
Cable Length: 1km~5km/roll
Operation Temperature: -40℃~+70℃
| Cores | Cores/tube | FRP diameter (mm) | Sheath thickness (mm) | Approx. overall diameter (mm) | Approx. weight (kg/km) |
|---|---|---|---|---|---|
| 12 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.2 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.3 | 0.5±0.1 | 6.8 | 38 |
We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals.
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure product quality.
Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design requirements, and we'll provide a reasonable price and create samples for you.
Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages Spoken: English, Chinese
