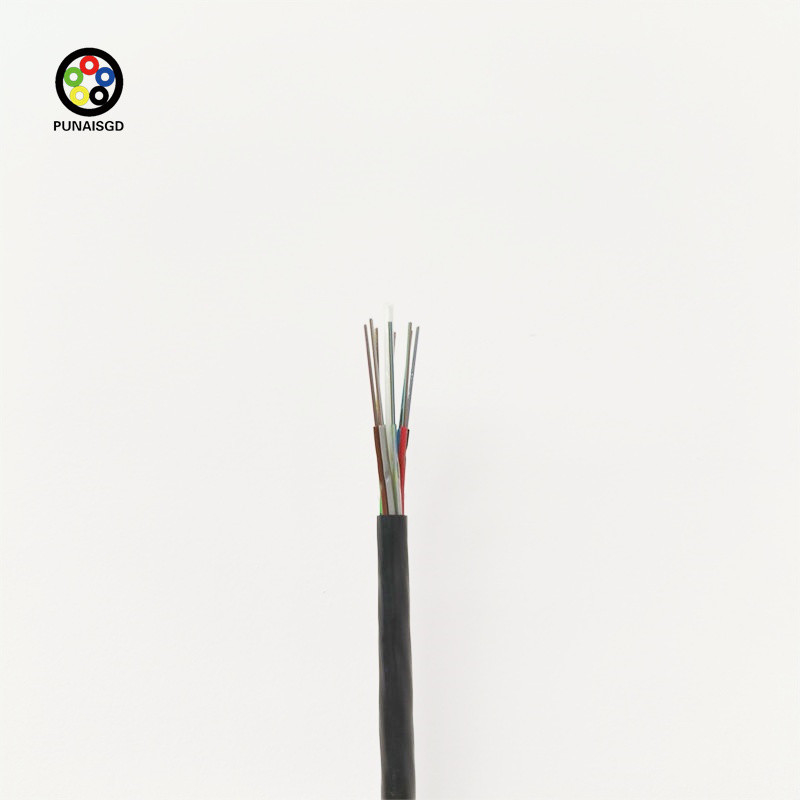

PE Jacket GCYFY Outdoor Fiber Optic Cable for Telecom

Name: PE Jacket GCYFY Outdoor Fiber Optic Cable for Telecom
Brand: guangzhou fiber cablepuls co ltd
SKU: GCYFY
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GCYFY

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    PE Out Sheath Fiber Optic Cable, Air Blown Outdoor Fiber Optic Cable, Outdoor Fiber Optic Cable GCYFY


Model:	GCYFY	Jacket:	PE
Fibers:	G652D	Application:	Telecomunication
Color:	Blcack Or Customized	Use:	Duct /aerial

Model:	GCYFY
Jacket:	PE
Fibers:	G652D
Application:	Telecomunication
Color:	Blcack Or Customized
Use:	Duct /aerial

PE Jacket GCYFY Outdoor Fiber Optic Cable for Telecom

PE Out Sheath Outdoor Fiber Optic Cable Air Blown Blowing GCYFY

Product Specifications

Attribute	Value
Model	GCYFY
Jacket	PE
Fibers	G652D
Application	Telecommunication
Color	Black or customized
Use	Duct / Aerial

GCYFY Fiber Optic Cable PE Out Sheath Air Blown Blowing Optic Cable

The GCYFY cable features a straightforward structure with FRP as its central reinforcement, known for its high modulus. The outer casing, made of PBT, is compact in size. The stranding process coils the casing or filler strip around the FRP, which is then integrated into the cable's core and sheathed.

Key Features

Metal-free structure effectively reduces radio-frequency and electromagnetic interference
Compact design prevents tube collapse
Aramid reinforcement provides superior tensile strength
Tubes packed with proprietary grease ensure water resistance
Excellent flexibility for easy installation

Cable Structure

Type: GCYFY
Fibers: 2-144 Cores
Fiber Type: G652D
Structure: Loose tube Stranded
Jacket material: HDPE
Cable Length: 1km~5km/roll

Technical Parameters

Cores	Cores/tube	FRP diameter (mm)	Sheath thickness (mm)	Approx. overall diameter (mm)	Approx. weight (kg/km)
12	12	1.2	0.5±0.1	5.6	24
24	12	1.2	0.5±0.1	5.6	24
48	12	1.2	0.5±0.1	5.6	24
72	12	1.2	0.5±0.1	5.6	24
96	12	2.3	0.5±0.1	6.8	38

Our Manufacturing Facility

Frequently Asked Questions

Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals.

How do we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspections before shipment.

Can you ship products to my country?

Yes, we can. If you don't have your own shipping forwarder, we can assist you with logistics.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements, and we'll provide a competitive quote and produce samples for you.

What services do we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
