GYTA Outdoor Fiber Optic Cable Aluminum Armored G652D/B

Name: GYTA Outdoor Fiber Optic Cable Aluminum Armored G652D/B
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aluminum Strip Armoured Cable, Outdoor Fiber Optic Cable GYTA, Aluminum Strip Fiber Optic Cable


Item:	GYTA	Outdoor:	Outdoor Fiber Optic Cable
Fiber:	G652D OR G652B	Jacket Material:	PE
Strength Member:	Steel	Armored:	Aluminum

Item:	GYTA
Outdoor:	Outdoor Fiber Optic Cable
Fiber:	G652D OR G652B
Jacket Material:	PE
Strength Member:	Steel
Armored:	Aluminum

GYTA Outdoor Fiber Optic Cable Aluminum Armored G652D/B

Communication Outdoor Fiber Optic Cable GYTA Aluminum Strip Armoured Cable

Product Specifications

Attribute	Value
Item	GYTA
Outdoor	Outdoor Fiber Optic Cable
Fiber	G652D OR G652B
Jacket Material	PE
Strength Member	Steel
Armored	Aluminum

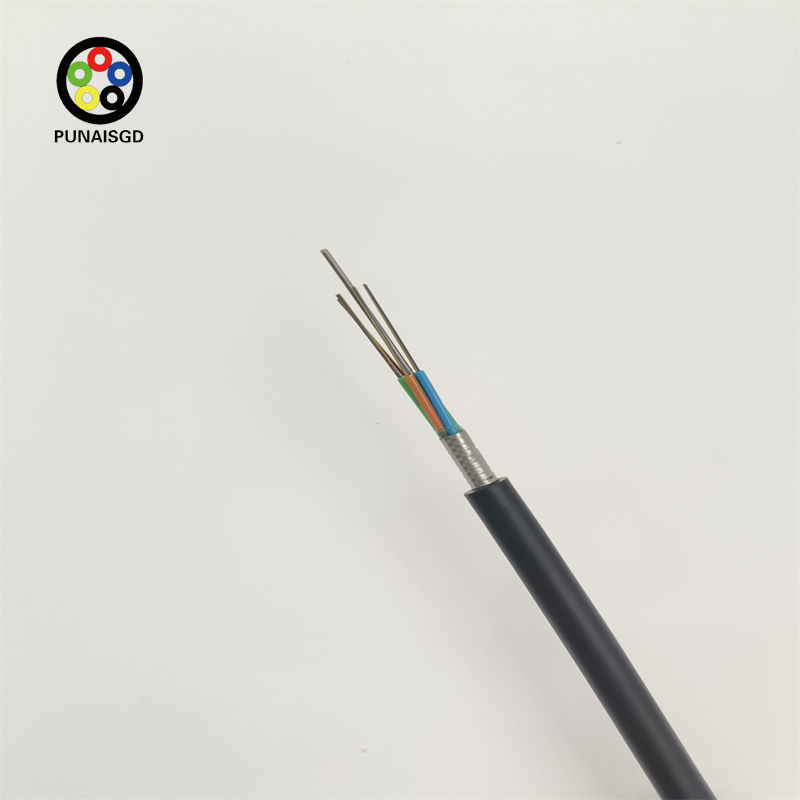

GYTA Outdoor Fiber Optical Cable

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are engineered to deliver a high number of fibers while maintaining the adaptability and range of options necessary for the most challenging installations, including ducts and subterranean channels.

Key Features

Low dispersion and minimal attenuation for superior signal clarity
Precision design controlling fiber excess length and stranding for enhanced mechanical and environmental performance
Armored with corrugated steel tape for excellent moisture and crush resistance
Compact size and lightweight design for easy installation
Rated for operation in temperatures from -40°C to +60°C

Cable Structure

Fiber: 2-288 fiber, Multi-loose tube gel-filled
Central Strength Member: Fiberglass reinforced Plastic (FRP) or steel wire
Armor: Aluminum Tape Armor
Outer Jacket: Black UV Polyethylene(PE)

Product Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282
