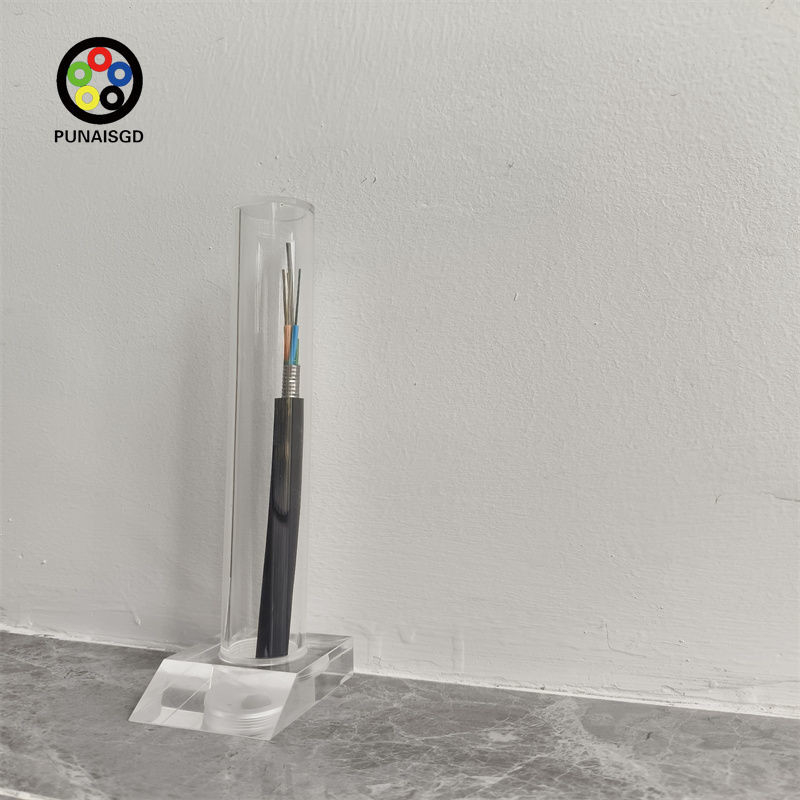

GYTA Outdoor Fiber Optic Cable PE Jacket Steel Armored

Name: GYTA Outdoor Fiber Optic Cable PE Jacket Steel Armored
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    GYTA Outdoor Fiber Optic Cable, GYTA Duct Fiber Optic Cable, Underground Fiber Optic Cable


Item:	GYTA	Outdoor:	Outdoor Fiber Optic Cable
Fiber:	G652D OR G652B	Jacket Material:	PE
Strength Member:	Steel	Armored:	Aluminum

Item:	GYTA
Outdoor:	Outdoor Fiber Optic Cable
Fiber:	G652D OR G652B
Jacket Material:	PE
Strength Member:	Steel
Armored:	Aluminum

GYTA Outdoor Fiber Optic Cable PE Jacket Steel Armored

GYTA Outdoor Fiber Optic Cable - Direct Buried Underground

Product Specifications

Attribute	Value
Item	GYTA
Outdoor	Outdoor Fiber Optic Cable
Fiber	G652D OR G652B
Jacket Material	PE
Strength Member	Steel
Armored	Aluminum

Product Description

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to offer a high fiber count with the flexibility and adaptability needed for rigorous installations in ducts and underground conduits.

Key Features

Minimized dispersion and low attenuation for enhanced signal clarity
Excellent mechanical and environmental resistance
Corrugated steel tape for improved moisture and crush resistance
Easy installation due to small diameter and light weight
Operational temperature range from -40°C to +60°C

Cable Structure

Fiber: 2-288 fiber, multi-loose tube gel-filled
Central Strength Member: Fiberglass reinforced plastic (FRP) or steel wire
Armor: Aluminum Tape Armor
Outer Jacket: Black UV Polyethylene (PE)

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282

Our Manufacturing Facility

Frequently Asked Questions

Why choose us?

We are a manufacturer located in Guangzhou, China, operating since 2011. We serve domestic markets with a team of 11-50 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

Can you send products to my country?

Yes, we can. If you don't have your own shipping forwarder, we can assist you.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design and we'll provide a reasonable price and samples.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow

Languages Spoken: English, Chinese
