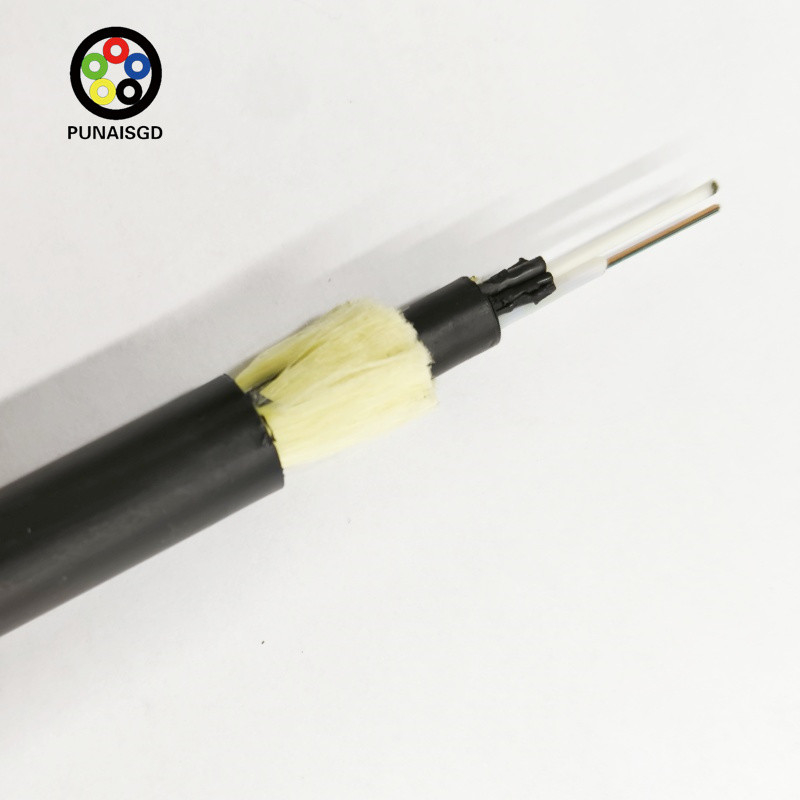

ADSS Fiber Optic Cable 12 Cores Single Mode PE Jacket

Name: ADSS Fiber Optic Cable 12 Cores Single Mode PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    8 Cores ADSS Fiber Optic Cable, PE Jacket ADSS Fiber Optic Cable, 3 Kilometers ADSS Fiber Optic Cable


Type:	ADSS Optical Cable	Cores:	12cores
Mode:	Single Mode	Color:	Customized
Package:	Drum	Installation:	Aerial Or Duct

Type:	ADSS Optical Cable
Cores:	12cores
Mode:	Single Mode
Color:	Customized
Package:	Drum
Installation:	Aerial Or Duct

ADSS Fiber Optic Cable 12 Cores Single Mode PE Jacket

PE Jacket ADSS Fiber Optic Cable 2 4 6 8 Cores 2/3 Kilometers

Attribute	Value
Type	ADSS optical cable
Cores	12cores
Mode	single mode
Color	customized
Package	drum
Installation	aerial or duct

Product Description

The All-Dielectric Self-Supporting (ADSS) fiber-optic cable system eliminates the necessity for a separate messenger wire or support infrastructure during installation. It incorporates a central conduit to hold the optical fibers, which are then wrapped in aramid fiber layers followed by an outer protective jacket.

The complete dielectric composition of ADSS cables renders them fit for installation in regions with substantial electrical interference, such as near power lines. They are frequently deployed in long-distance, high-voltage environments, including over power lines, railways, highways, and rivers.

The self-supporting attribute of ADSS cables facilitates a more straightforward and cost-efficient installation process than traditional fiber-optic cables, as it negates the requirement for additional support structures. Additionally, the use of ADSS cables can lessen the visual impact of overhead fiber-optic installations.

Details Images

Key Characteristics

The cable's integrity is bolstered by strength members composed solely of non-metallic dielectric materials.
A proprietary gel within the tube ensures critical safeguarding of the optical fibers.
The core strength members, constructed from FRP and incorporating Dupont's aramid yarn, add to the cable's robust framework.
The cable achieves outstanding attenuation, showcasing its superior AT performance.
It demonstrates consistent performance over a wide temperature range and possesses anti-aging features, mitigating the environmental effects of ice and wind on towers.

Product Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Armid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed
