ADSS Fiber Optic Cable Single Mode G652D Double Jacket HDPE MDPE

Name: ADSS Fiber Optic Cable Single Mode G652D Double Jacket HDPE MDPE
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    ADSS Aerial Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable, 200 Rolls Aerial Fiber Cable


Type:	ADSS	Out Sheath:	Double Jacket
Fiber:	SM G652D	Samples:	Free Sample
Fiber Mode:	Single Mode	Sheath Material:	HDPE MDPE(Double Jacket)

Type:	ADSS
Out Sheath:	Double Jacket
Fiber:	SM G652D
Samples:	Free Sample
Fiber Mode:	Single Mode
Sheath Material:	HDPE MDPE(Double Jacket)

ADSS Fiber Optic Cable Single Mode G652D Double Jacket HDPE MDPE

ADSS Outdoor Aerial Fiber Optic Cable 200 Rolls Fast Delivery

Product Specifications

Attribute	Value
Type	ADSS
Out Sheath	Double Jacket
Fiber	SM G652D
Samples	Free sample
Fiber Mode	Single Mode
Sheath Material	HDPE MDPE (Double jacket)

Product Description

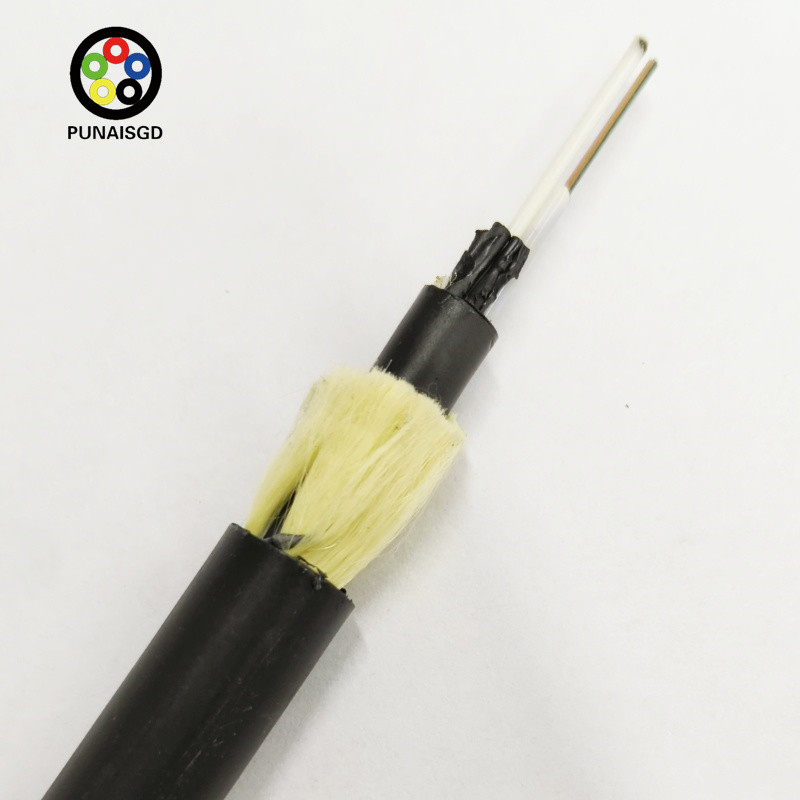

All-Dielectric Self-Supporting (ADSS) fiber-optic cables are designed for autonomous installation without requiring separate messenger wires or support systems. Featuring a central conduit for optical fibers, protected by aramid fiber layers and an outer sheath, these cables are ideal for areas with electrical interference near power lines.

Key Features

Dielectric material-based strength members with no metallic elements
Special protective gel inside the tube safeguards optical fibers
FRP central strength members with Dupont's aramid yarn for durability
Excellent attenuation performance with high AT rating
Reliable performance across temperature variations with anti-aging properties
Reduces environmental stress on towers in harsh weather conditions

Technical Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Armid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed

Manufacturing Facility

Frequently Asked Questions

1. Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011, serving domestic markets with a team of 11-50 professionals.

2. How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

3. Can you send products to my country?

Yes, we can ship worldwide. If you don't have your own forwarder, we can assist with shipping arrangements.

4. Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements for a quote and sample production.

5. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow

Languages: English, Chinese
