Name: Armored Composite Fiber Optic Cable GDTS GDTA With Steel Tape
Brand: guangzhou fiber cablepuls co ltd
SKU: GDTS 24b1.3 +RVV1MM
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: GDTS 24b1.3 +RVV1MM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Armored Composite Fiber Optic Cable, GDTS Composite Fiber Optic Cable, GDTA Composite Fiber Optic Cable


ITEM NO.:	GDTS 24B1.3 +RVV1mm	Cooper Wire:	1.5 Mm²/2.5mm²/1mm²
Jacket Color:	Black Or Customized	Jacket Material:	PE/LSZH
Armored Type:	Steel Tape	Strength Member:	Steel Wires
Structure:	Multi Loose Tubes

ITEM NO.:	GDTS 24B1.3 +RVV1mm
Cooper Wire:	1.5 Mm²/2.5mm²/1mm²
Jacket Color:	Black Or Customized
Jacket Material:	PE/LSZH
Armored Type:	Steel Tape
Strength Member:	Steel Wires
Structure:	Multi Loose Tubes

Armored Composite Fiber Optic Cable GDTS GDTA With Steel Tape

Composite Fiber Optic Cable GDTS GDTA Composite/Hybrid Fiber Optic Cable With Steel Tape

Composite Fiber Optic Cable GDTS GDTA

Composite/Hybrid Fiber Optic Cable With Steel Tape

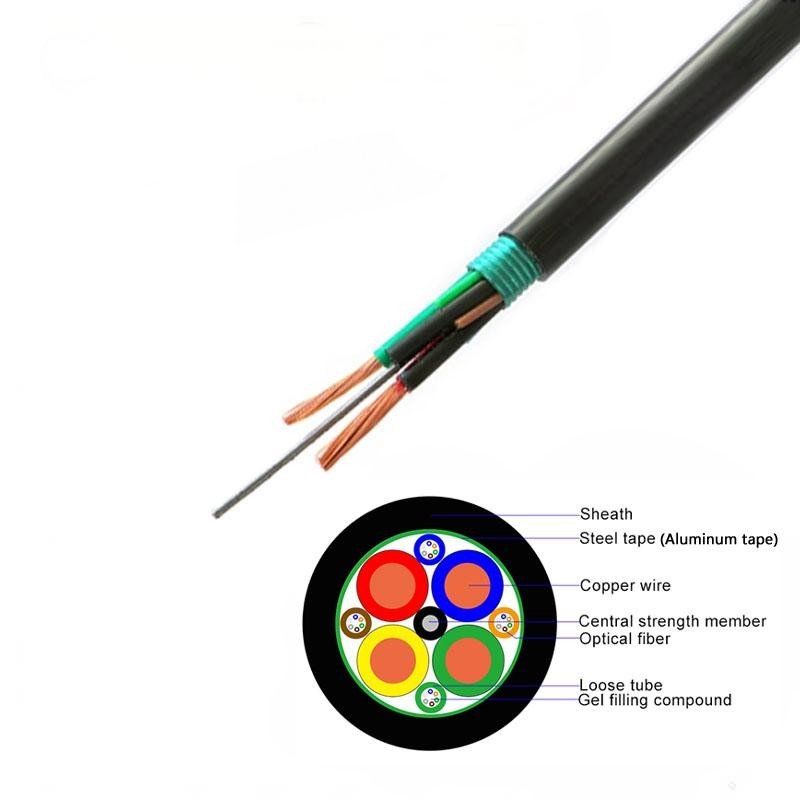

Composite or Hybrid Fiber Optic Cables that have a number of different components laid up

within the bundle. These types of cables allow for multiple transmission paths by various components,

whether they be metal conductors or fibre optics, and allow the user to have a single cable,

therefore reducing the overall cost and lead time for installation.

Armored Composite Fiber Optic Cable GDTS GDTA With Steel Tape 1

1. The composite cable provides the equipment electricity and single transmission,

and improves central monitoringand maintenance for equipment power.
2. To reduce the coordination and maintenance of power supply.
3. Combines optical fiber (multimode or single mode) and

copper conductor for DC power in a single light weightaluminum corrugated cable

Product Paramenters

item
cooper	RVV2*2.5MM	RVV-4*2.5mm	RVV-6*2.5mm	RVV-8*2.5mm
weight	347	382	502	628

fiber count	structure	fibers per tube	loose tube diameter	CONDUCTOR CORSS SECTIONAL AREA	cable diameter	cable weight
2-18	1	2-18	1.8±0.1	1	9.4	92
20-24	1	20-24	1.9±0.1	1	10.4	106
2-18	1	2-18	1.8±0.1	1.5	10.8	119
20-24	1	20-24	1.8±0.1	1.5	11.3	127

Item		Unit	Specification
Fier Tyoe		G652D	G652D
Mode filed Diameter	1310nm	μm	9.2±0.4
Mode filed Diameter	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±0.1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±7
Coating/cladding concentricity error		μm	≤12
Cable cut-off wavelength		μm	≤1260
Attenuation Coefficient	1310nm	db/km	≤0.36
Attenuation Coefficient	1550nm	db/km	≤0.22
Proof stress level		kpsi	≥100
Note: Other parameters meet standard ITU-T G.652

Production Supplier Profile

How do I place an OEM or customized order?

1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
