24 Core OPGW Fiber Optic Cable Single Mode Stainless Armoured

Name: 24 Core OPGW Fiber Optic Cable Single Mode Stainless Armoured
Brand: guangzhou fiber cablepuls co ltd
SKU: OPGW
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: OPGW

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: negotiate

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stainless armoured OPGW Fiber Optic Cable, single mode OPGW Fiber Optic Cable


Type:	OPGW	Selling Units::	Single Item
Fibers Number:	24	Packing:	2-6km/wooden Drum
Warranty Period:	25 Years	Fiber Type:	Single-mode Or Multimode

Type:	OPGW
Selling Units::	Single Item
Fibers Number:	24
Packing:	2-6km/wooden Drum
Warranty Period:	25 Years
Fiber Type:	Single-mode Or Multimode

24 Core OPGW Fiber Optic Cable Single Mode Stainless Armoured

OPGW Fiber Optic Cable Single Mode Overhead Ground Wire Stainless Armoured

Product Specifications

Attribute	Value
Type	OPGW
Selling Units	Single item
Fibers Number	24
Packing	2-6km/wooden Drum
Warranty Period	25 years
Fiber Type	Single-mode or Multimode

Product Overview

OPGW Fiber Optic Cable 12-16 cores Composite Overhead Ground Wire stainless armoured

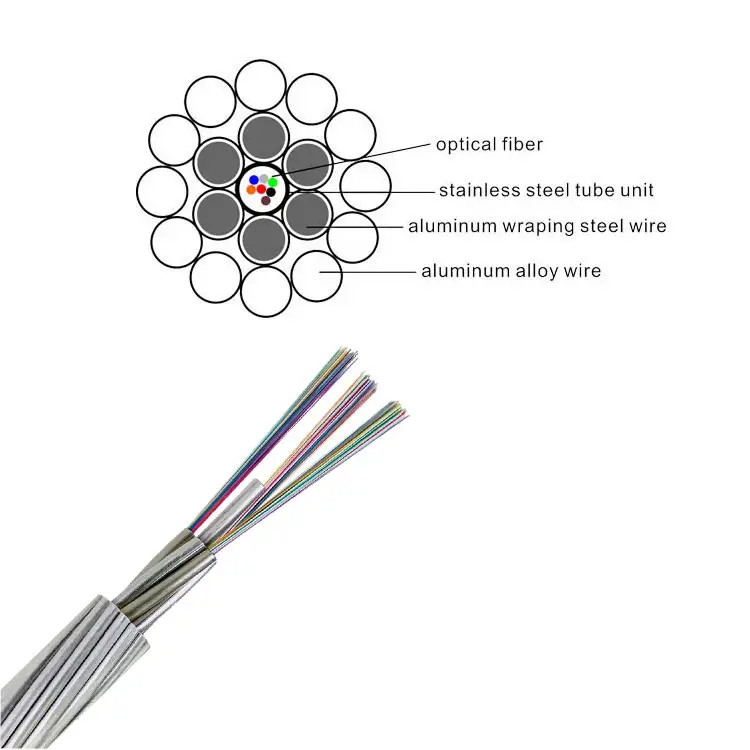

OPGW is a cable structure that combines optical transmission with overhead ground wire for power lines. It functions as both an optical fiber cable and an overhead ground wire, offering protection against lightning strikes and conducting short circuit currents. The OPGW is composed of a stainless steel tube housing the optical unit, aluminum-clad steel wire, and aluminum alloy wire. It features a central stainless steel tube and a layered stranding design. The structure can be customized based on environmental conditions and customer specifications.

Applications

Designed to replace old ground wires and integrate with new high-voltage ground wire structures. Provides lightning protection and carries short circuit currents while offering optical fiber communication capabilities.

Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)	Allowable Crush Resistance (N/100mm)
2-36	12.1	125	6	6	3000	1000
36-72	13.9	135	12	6	3000	1000
74-96	16	170	12	8	3000	1000
98-120	16.6	210	12	10	3000	1000
122-144	18.2	245	12	12	3000	1000
144-216	18.2	250	12	18 (2 layers)	3000	1000

Our Manufacturing Facility

Frequently Asked Questions

Why choose us?

We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

Can you send products to my country?

Sure, we can. If you do not have your own ship forwarder, we can help you.

Can you do OEM for me?

We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Language Spoken: English, Chinese
