GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath

Name: GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath
Brand: guangzhou fiber cablepuls co ltd
SKU: GJXFH
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GJXFH

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Customized Length fiber optic cable, communication fiber optic cable, LZSH fiber optic cable


Model Number:	GJXFH	Type:	Fiber Optic Cable
Jacket Material:	PE HDPE	Fiber Count:	6 Cores
Length:	Customized	Strength Member:	Two Parallel FRP

Model Number:	GJXFH
Type:	Fiber Optic Cable
Jacket Material:	PE HDPE
Fiber Count:	6 Cores
Length:	Customized
Strength Member:	Two Parallel FRP

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath

GJXFH fiber optic cable high quality communication cable with LZSH out sheath

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 0

The butterfly optical cable represents a new approach to user access by integrating characteristics of

both indoor soft cables and self-supporting varieties. It is the optimal choice for overcoming FTTX network

issues and plays a significant role in establishing networks for intelligent buildings, digital districts, campus

networks, and local area networks.

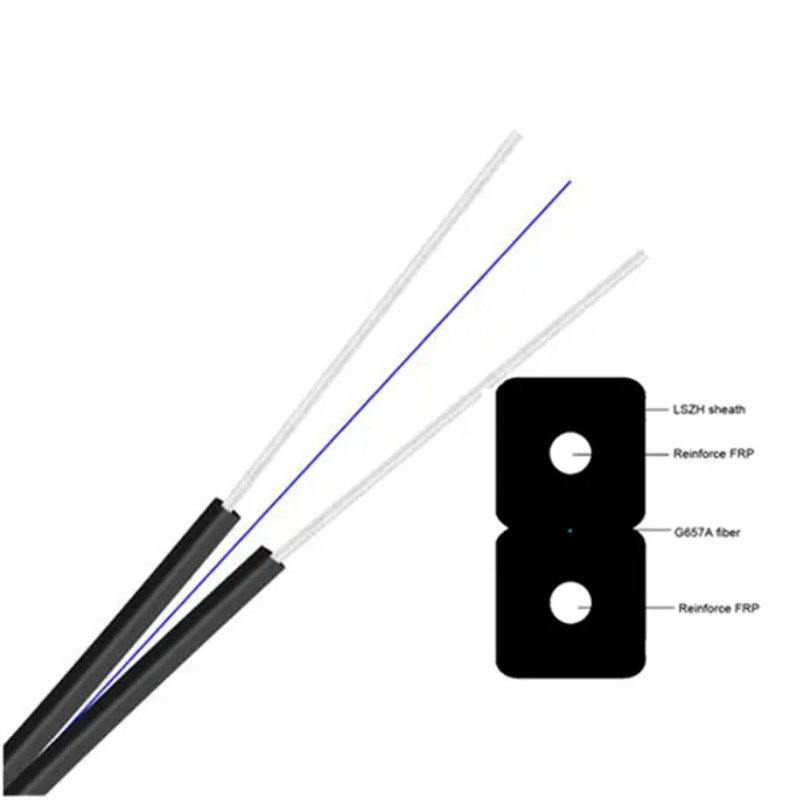

STRUCTURE

The fiber optic drop wire unit is situated in the middle, surrounded by two parallel steel wires. The cable

is encased in a black or colored LSZH sheath. FTTH stands for Fiber to Home and is constructed with

2*0.5mm FRP for self-supporting capability.

PRODUCT SPECIFICATIONS

Fiber Cores	Cable OD(mm)	Cable/Weight (kg/km)	Tensile Strength(long/short term)	Crush Resistance(long/short term N/100mm	Crush Resistance(long/short term N/100mm
1	(2.0±0.2)* (5.0±0.2)	20	60/120	300/1000	15/35
2	(2.0±0.2)* (5.0±0.2)	20	60/120	300/1000	15/35
4	(2.0±0.2)* (5.5±0.2)	21	60/120	300/1000	15/35
6	(2.0±0.2)* (6.0±0.2)	22	60/120	300/1000	15/35

Production Transportation Process

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 3

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 4

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 5

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 7

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 9

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 11

Our Factory

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 12

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 13

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 14

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 15

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 16

GJXFH Fiber Optic Cable Communication Cable With LZSH Out Sheath 17

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%).

There are total about 11-50
people in our factory.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and

make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
