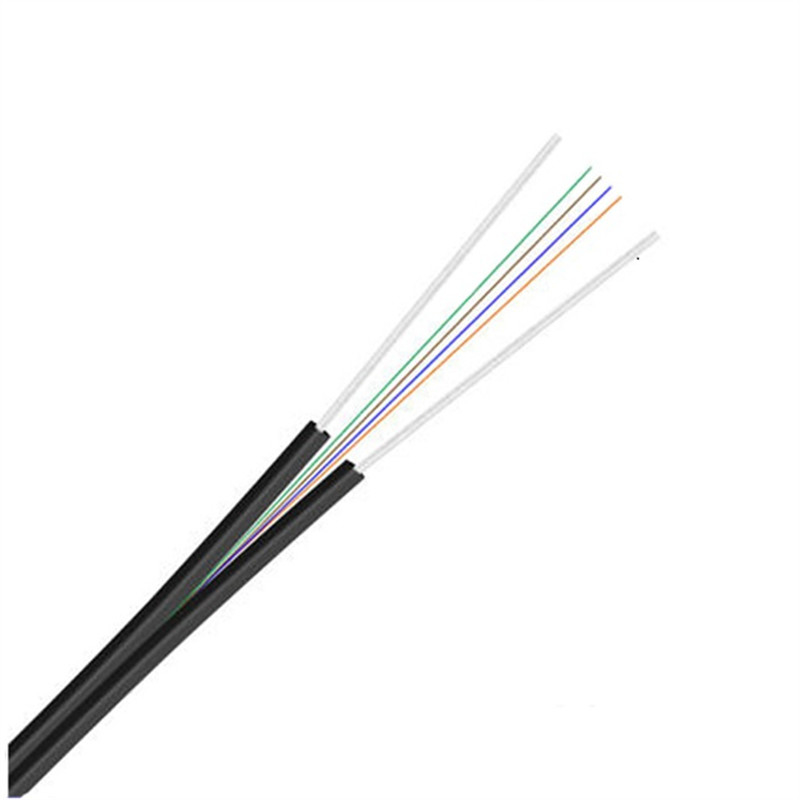

GJXH Indoor Fiber Optic Cable Single Mode FTTH 1km LSZH PVC

Name: GJXH Indoor Fiber Optic Cable Single Mode FTTH 1km LSZH PVC
Brand: guangzhou fiber cablepuls co ltd
SKU: GJXH
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: GJXH

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Indoor fiber optic cable, FTTH fiber optic cable, single mode fiber optic cable


Model Number:	GJXH	Length:	1km
Fiber Count:	1core/4core	Jacket:	LSZH Or PVC
Application:	FTTH FTTB	Colour:	Black

Model Number:	GJXH
Length:	1km
Fiber Count:	1core/4core
Jacket:	LSZH Or PVC
Application:	FTTH FTTB
Colour:	Black

GJXH Indoor Fiber Optic Cable Single Mode FTTH 1km LSZH PVC

GJXH Fiber Optic Cable Indoor Fiber Optic Cable Single Mode FTTH

Product Attributes

Attribute	Value
Model Number	GJXH
Length	1km
Fiber count	1core/4core
Jacket	LSZH or PVC
Application	FTTH FTTB
Colour	black

Product Description

GJXH fiber optic cable Factory price indoor fiber optic cable single mode FTTH

The structure of fiber optic drop cables includes an optical communication fiber at the center, flanked by two parallel supports, either of FRP or metal. This is all enclosed in a jacket of black or colored PVC or LSZH, known for being flame-resistant and low in smoke emissions.

Structure

Featuring low-bend sensitivity, this fiber provides high bandwidth and exceptional transmission efficiency
The design includes two parallel FRP strength members that effectively protect the fiber from crushing
Additional steel wires or reinforcement materials enhance its tensile strength
Its lightweight structure and unique flute design make stripping and splicing simple, streamlining installation and maintenance
The outer sheath is designed to be low smoke, halogen-free, and resistant to flames

Product Specifications

Fiber Cores	Cable OD(mm)	Cable/Weight (kg/km)	Tensile Strength(long/short term)	Crush Resistance(long/short term N/100mm)	Bending Radius Static/Dynamic mm
1	(2.0±0.2)* (5.0±0.2)	20	60/120	300/1000	15/35
2	(2.0±0.2)* (5.0±0.2)	20	60/120	300/1000	15/35
4	(2.0±0.2)* (5.5±0.2)	21	60/120	300/1000	15/35
6	(2.0±0.2)* (6.0±0.2)	22	60/120	300/1000	15/35

Production Transportation Process

Our Factory

FAQ

1. Why choose us?

We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

3. Can you send products to my country?

Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?

We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you.

5. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Language Spoken: English, Chinese
