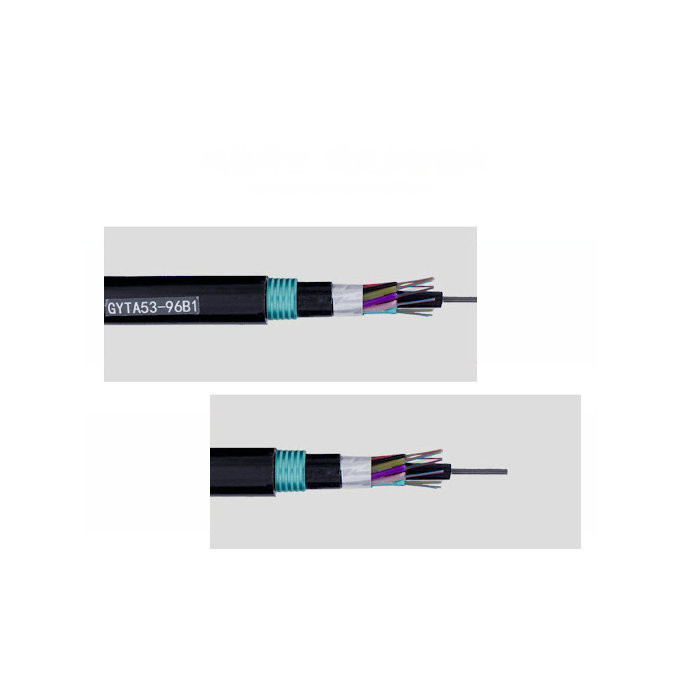

Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground

Name: Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53-96b1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53-96b1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                GYTA53 Direct Burial Fiber Optic Cable, Underground Direct Burial Fiber Optic Cable


Item No.:	GYTA53-96b1.3	Jacket Material:	PE Double
Fiber Type:	Singlemode/multimode	Armored Type:	Steel Tape And Aluminum
Application:	Dicetly Buried/underground	Fiber Count:	96 Cores
Feature:	Moisture-Proof Water-Blocking Material

Item No.:	GYTA53-96b1.3
Jacket Material:	PE Double
Fiber Type:	Singlemode/multimode
Armored Type:	Steel Tape And Aluminum
Application:	Dicetly Buried/underground
Fiber Count:	96 Cores
Feature:	Moisture-Proof Water-Blocking Material

Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground

Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground

This specification covers the design requirements and performance standard for the supply of optical fiber
cable. This specification covers the general requirements and performance of cable which our offering
including optical characteristics, mechanical characteristics and geometrical characteristics.

Cable Specification

Item Name:Fiber optical cable GYTA53
Total Fiber Count:2-288core

Application

1. Interbuilding voice or data communication backbone

2. Installed in duct,underground conduit.

Standards and Certificate
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO900,CE,FCC

Characteristics

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground 0

GYTA53 Cable Place Order Information

CABLE DATA

fiber count	fibers per tube	loose tube diameter	CSM diameter	nominal tickness of outer jacket	cable diameter	cable weight
4	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140
6	6	1.9±0.1	1.4/1.4	1.6	11.5 ±0.2	140
8	8	1.9±0.1	1.4/1.4	1.6	11.5 ±0.2	140
12	6	1.9±0.1	1.4/1.4	1.6	11.5 ±0.2	140
24	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
36	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	140
48	12	2.2±0.1	1.6/1.6	1.6	12.2±0.2	140
72	12	2.2±0.1	1.6/3.5	1.6	12.2±0.2	150
96	12	2.2±0.1	2.0/2.0	1.6	12.2±0.2	160
144	12	2.2±0.1	2.0/6.4	1.8	13.8±0.2	180

Fiber Parameters
No.	Items			Unit	Specification
					G.652D
1	Mode Field Diameter		1310nm	μm	9.2±0.4
			1550nm	μm	10.4±0.8
2	Cladding Diameter			μm	125.0±1.0
3	Cladding Non-Circularity			%	≤1.0
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm		dB/km	≤0.35
		1550nm		dB/km	≤0.21
		1380nm		dB/km	≤0.35
		1625nm		dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm		dB/km	≤0.04
		1550nm 1525-1575nm		dB/km	≤0.03
		1550nm 1480-1580nm		dB/km	≤0.05
11	Dispersion	1288-1339nm		ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm		ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm		ps/(nm.km)	≤20
		1550nm		ps/(nm.km)	≤18
12	Zero dispersion wavelength			Nm	1300-1324
13	Zero dispersion slope			ps/(nm2•km)	≤0.092
14	Typical value			ps/(nm2•km)	0.04
15	Largest individual fiber			Ps/√ km	0.2
16	Link design values			Ps/√ km	0.1
17	Two way average			1310nm-1550	≤0.01dB

Cable Marking&Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter;
**”G.652D” means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber..

Also can according to client cable marking.

Direct Burial Fiber Optic Cable GYTA53 96 Cores Underground 3

Production Supplier Profile

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
