ADSS Fiber Optic Cable 6-144 Cores FRP Strength Member

Name: ADSS Fiber Optic Cable 6-144 Cores FRP Strength Member
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

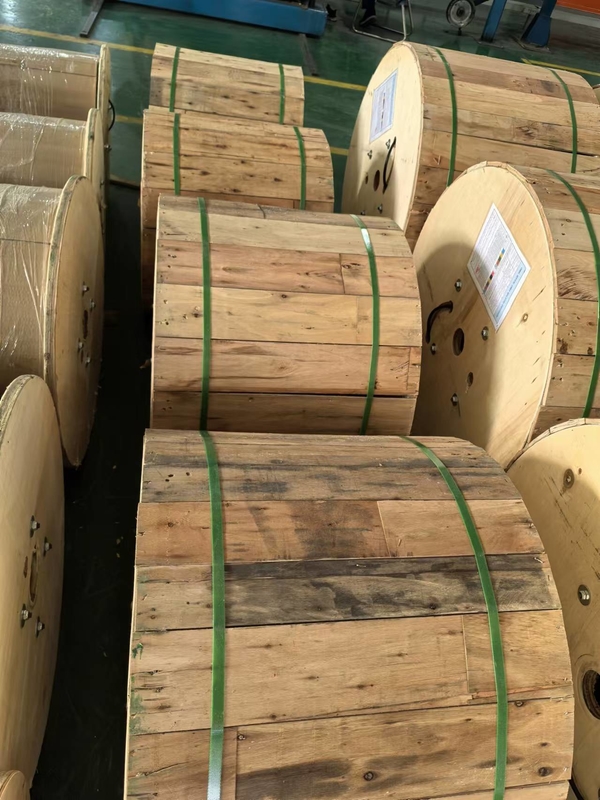

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Different Span ADSS Fiber Optic Cable, Double Sheath ADSS Fiber Optic Cable, Single Jacket ADSS Fiber Optic Cable


Type:	ADSS Optical Cable	Jacket:	Double Jacket/ Single Jacket
Model:	ADSS	Strength Member:	FRP
Fiber Counts:	1-144cores	Colour:	Black

Type:	ADSS Optical Cable
Jacket:	Double Jacket/ Single Jacket
Model:	ADSS
Strength Member:	FRP
Fiber Counts:	1-144cores
Colour:	Black

ADSS Fiber Optic Cable 6-144 Cores FRP Strength Member

ADSS Fiber Optic Cable Parameters Single Jacket Double Sheath Different Span

Product Specifications

Type

ADSS optical cable

Jacket

Double Jacket/ Single Jacket

Model

ADSS

Strength Member

FRP

Fiber Counts

1-144cores

Colour

Black

PE Jacket ADSS Fiber Optic Cable 6 8 12 Cores 50m Span

ADSS Fiber Optic Cable Operating Voltage

Operating voltage, also known as special use voltage, is the maximum tension to which the cable is subjected when it may exceed the design load during its effective useful life. Fiber optic cables can tolerate overloads for short periods, and the fiber can withstand a tension that is generally greater than 60% of its breaking limit.

When the tension in the fiber is less than 0.5% (for central tubes) or 0.35% (for stratified tubes), additional fiber attenuation may occur, but the fiber should return to normal once this tension is removed. Proper operating voltage ensures reliable operation of ADSS cables over their lifetime.

The section of the fiber optic cable typically has a length of 50 to 100 meters, depending on the number of cores and weight of the cable. Heavier cables generally have shorter section lengths. Locking distance is not directly related to pulling force, and a blocking distance of 100 meters can be achieved with 3KN, though this is more suitable for stretches of 600 meters. An ADSS fiber optic cable with a tension of 24KN typically has a length of approximately 300 to 400 meters.

Product Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Armid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed

Key Characteristics

Strength members composed entirely of dielectric materials reinforce the cable's structure without metallic components
Specialized gel within the tube offers crucial protection for the optical fibers
Central strength members crafted from FRP, filled with aramid yarn contribute to the cable's robust construction
Remarkable attenuation performance
Stable performance across temperature variations with anti-aging capabilities, reducing environmental impact on towers from ice and wind

Product Images

Factory Profile

Frequently Asked Questions

Why choose us?

We are manufacturer located in Guangzhou, China, operating since 2011, serving domestic markets. Our factory employs 11-50 people dedicated to quality production.

How can we guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment to ensure consistent quality standards.

Can you send products to my country?

Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.

What services can we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
