72 Core ADSS Fiber Optic Cable with FRP Strength Member

Name: 72 Core ADSS Fiber Optic Cable with FRP Strength Member
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-72b1.3-100m
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-72b1.3-100m

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            72 core Fiber Optic cable, 72 core ADSS Fiber Optic Cable


Type:	ADSS Optical Cable-72b1.3	Jacket:	Single Jacket
Strength Member:	FRP/Aramid Yarn	Fiber Counts:	72
Colour:	Black	Manufacturer:	Yes
Installation Style:	Self-Support Aerial	Hs Code:	85447000
Outer Sheath Material:	HDPE,MDPE,LDPE

Type:	ADSS Optical Cable-72b1.3
Jacket:	Single Jacket
Strength Member:	FRP/Aramid Yarn
Fiber Counts:	72
Colour:	Black
Manufacturer:	Yes
Installation Style:	Self-Support Aerial
Hs Code:	85447000
Outer Sheath Material:	HDPE,MDPE,LDPE

72 Core ADSS Fiber Optic Cable with FRP Strength Member

ADSS Fiber Optic Cable - 72 Core

Product Specifications

Attribute	Value
Type	ADSS optical cable-72b1.3
Jacket	Single Jacket
Strength Member	FRP/Aramid yarn
Fiber Counts	72
Colour	Black
Manufacturer	Yes
Installation Style	Self-Support Aerial
Hs Code	85447000
Outer Sheath Material	HDPE, MDPE, LDPE

Product Description

The ADSS Fiber Optic Cable is engineered for dependable and efficient long-distance communication, featuring 72 cores of premium Single Mode (SM) G652D fibers. Its construction includes Aramid Yarn and FRP reinforcement, ensuring superior tensile strength and durability. This All-Dielectric Self-Supporting (ADSS) cable is perfect for aerial installations and long spans, particularly in high-voltage environments, as it eliminates the need for metallic elements.

Technical Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Aramid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed

Product Features

Strength members composed entirely of dielectric materials reinforce the cable's structure without metallic components
Specialized gel within the tube offers crucial protection for the optical fibers
Central strength members crafted from FRP, filled with aramid yarn from Dupont, contribute to the cable's robust construction
Remarkable attenuation performance
Stable performance across temperature variations with anti-aging capabilities, reducing environmental impact on towers from ice and wind

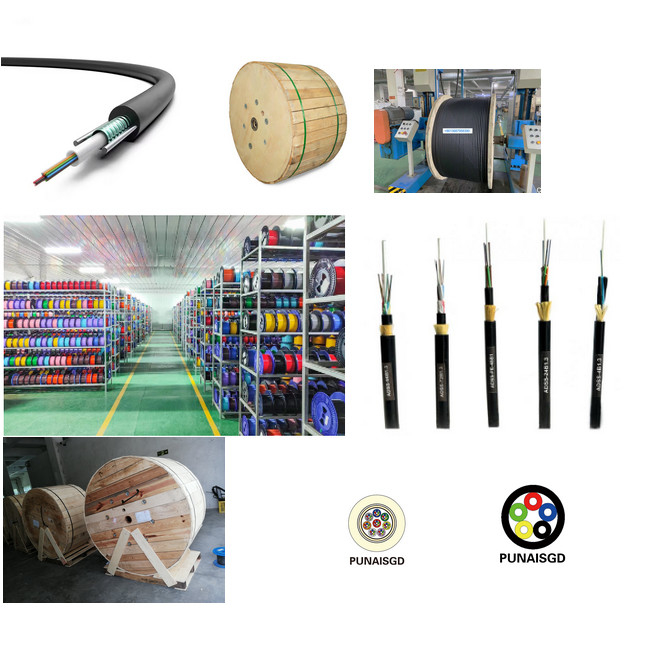

Product Images
