Name: GYXTW53 Outdoor Fiber Optic Cable for Underground Burial
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTW53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Underground Outdoor Fiber Optic Cable, Central Outdoor Fiber Optic Cable, GYXTW53 Outdoor Fiber Optic Cable


Model No:	GYXTW53	Use:	Underground
Samples:	Free	Fiber Grade:	G652D/ G657A1
Waterblocking Material:	Water Blocking Tape Or Filling Compound	Steel Wire:	0.7*2mm
Cable Color:	Black

Model No:	GYXTW53
Use:	Underground
Samples:	Free
Fiber Grade:	G652D/ G657A1
Waterblocking Material:	Water Blocking Tape Or Filling Compound
Steel Wire:	0.7*2mm
Cable Color:	Black

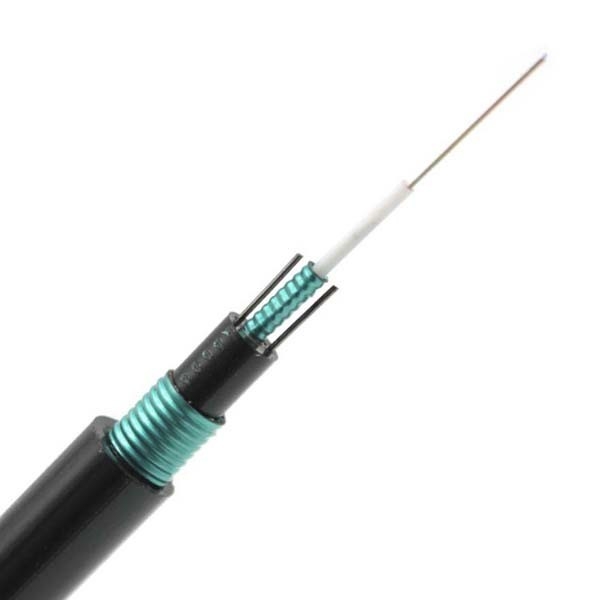

GYXTW53 Outdoor Fiber Optic Cable for Underground Burial

Outdoor Fiber Optic Cable GYXTW53

The GYXTW53 is a rugged outdoor fiber optic cable designed for direct burial applications, featuring loose tube construction with armored protection for harsh environments.

Key Specifications

Model No	GYXTW53
Use	Underground
Samples	Free
Fiber Grade	G652D/G657A1
Waterblocking Material	Water Blocking Tape Or Filling Compound
Steel Wire	0.7*2mm
Cable Color	Black

Product Features

Core Construction: Loose tube design with water-blocking material for fiber protection
Fiber Types: Single-mode (SM) or multi-mode (MM) options available (4-24 fibers standard)
Armored Design: Steel tape armoring for mechanical protection against damage
Outer Sheath: PE (Polyethylene) or LSZH (Low Smoke Zero Halogen) materials
Water Resistance: Gel or water-blocking tape prevents moisture penetration
Temperature Range: -40°C to +70°C operation
Fire Rating: Compliant with low-smoke, zero-halogen safety standards

Technical Parameters

Parameter	Unit	Specification
Attenuation (1310nm)	dB/km	≤0.35
Attenuation (1550nm)	dB/km	≤0.21
Cladding Diameter	μm	125.0±1.0
Core-Cladding Concentricity Error	μm	≤0.5
Zero Dispersion Wavelength	nm	1300-1324

Applications

Ideal for:

Aerial and underground installations
Telecommunication networks
FTTH/FTTB deployments
Data centers and industrial networks

Certifications

Compliant with IEC 60794-1, RoHS, CE, and UL standards

Custom Order Process

Send purchase requirements to cotton@fibercablepuls.com
Our team will confirm specifications and requirements
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping coordination starts 2 weeks before completion
