Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYXTW-2B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Model No:
|
GYXTW-2B1.3
|
Use:
|
Aerial
|
Loose Tube Material:
|
PBT Or Jelly
|
Cable Diameter:
|
7mm8mm
|
Samples:
|
Free
|
Fiber Grade:
|
G652D/ G657A1
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
Steel Wire:
|
0.7*2mm
|
Cable Color:
|
Black
|
|
Model No:
|
GYXTW-2B1.3
|
|
Use:
|
Aerial
|
|
Loose Tube Material:
|
PBT Or Jelly
|
|
Cable Diameter:
|
7mm8mm
|
|
Samples:
|
Free
|
|
Fiber Grade:
|
G652D/ G657A1
|
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
|
Steel Wire:
|
0.7*2mm
|
|
Cable Color:
|
Black
|
| Attribute | Value |
|---|---|
| Model No | GYXTW-2B1.3 |
| Use | Aerial |
| Loose Tube Material | PBT or Jelly |
| Cable Diameter | 7mm-8mm |
| Samples | Free |
| Fiber Grade | G652D/G657A1 |
| Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Steel Wire | 0.7*2mm |
| Cable Color | Black |

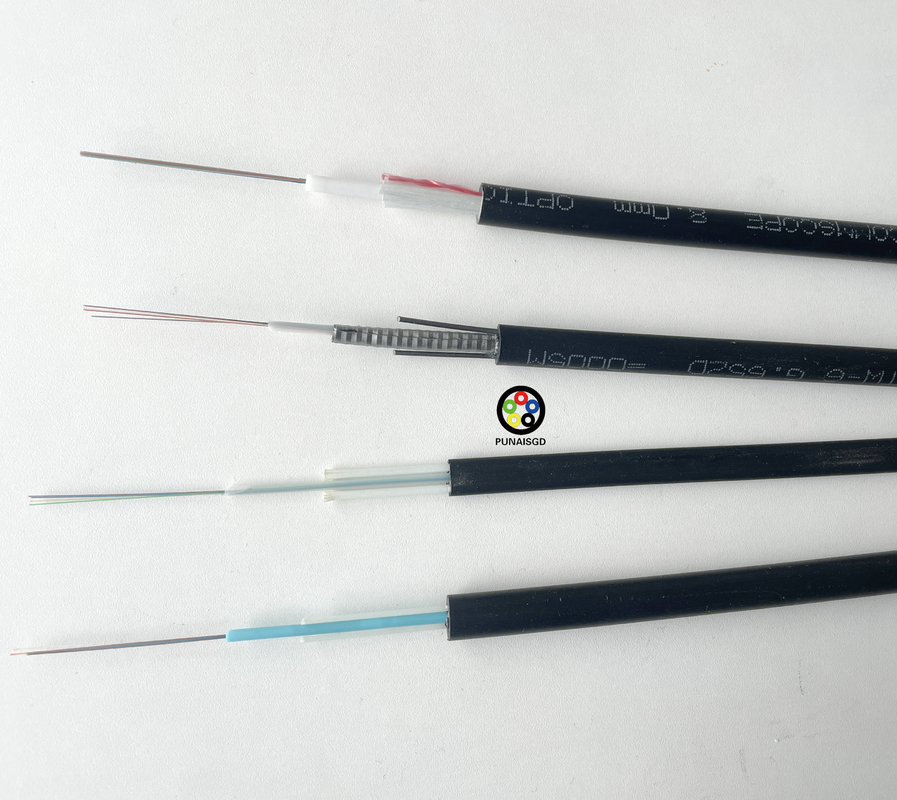

The GYXTW Fiber Optic Cable is a highly versatile and durable solution for both aerial and underground fiber optic installations. It provides protection against physical damage, moisture, and environmental stresses, making it ideal for use in demanding outdoor applications.
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm/1550nm) | μm | 9.2±0.4 / 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| ... (additional rows for all fiber parameters) | |||
COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
*The marking is printed every 1 meter
**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom cable marking available according to client requirements.
