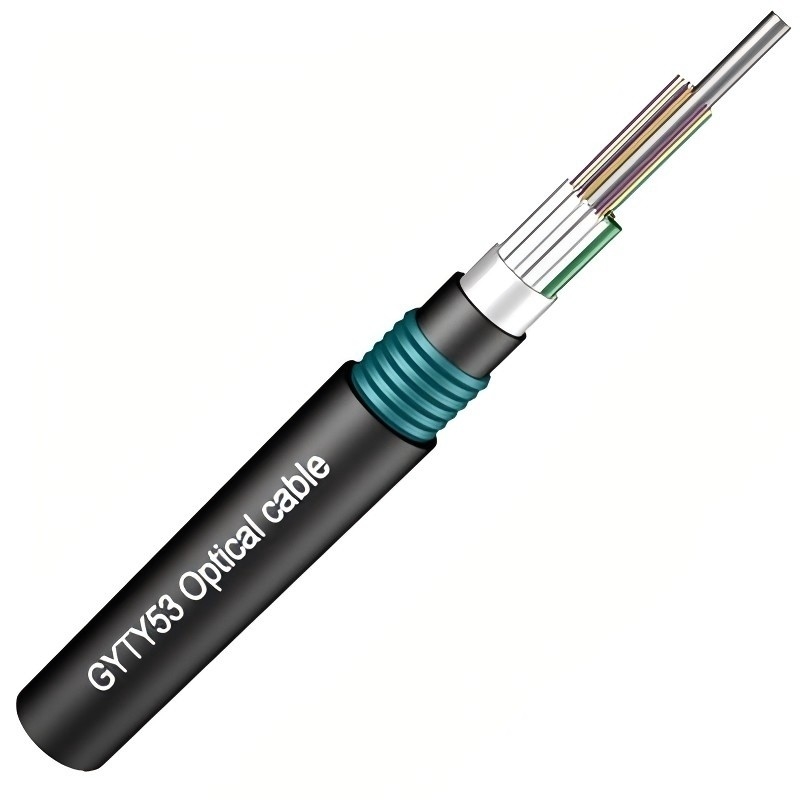

Name: 24 Core GYTY53 Direct Buried Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY53-24B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTY53-24B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    24 Core GYTY53 Fiber Optic Cable, Dierct Buried GYTY53 Fiber Optic Cable


Item No.:	GYFTY53-24B1.3	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Installation Method:	Direct Buried	Outer Diameter:	13 Mm
Armored Type:	Single Armor Double Jacket	Armored Material:	Steel Tape

Item No.:	GYFTY53-24B1.3
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Installation Method:	Direct Buried
Outer Diameter:	13 Mm
Armored Type:	Single Armor Double Jacket
Armored Material:	Steel Tape

24 Core GYTY53 Direct Buried Fiber Optic Cable

Direct Buried Cable 24 Core GYTY53 Fiber Optic Cable

Product Specifications

Attribute	Value
Item No.	GYFTY53-24B1.3
Jacket Color	Black
Jacket Material	PE/LSZH
Fiber Type	G.652D
Installation Method	Direct Buried
Outer Diameter	13 mm
Armored Type	Single Armor Double Jacket
Armored Material	Steel Tape

Product Features

Low dispersion and attenuation for optimal signal transmission
Precision-engineered design with controlled fiber excess length and distinct stranding process for excellent mechanical and environmental properties
Double-jacket structure provides superior moisture resistance and crush resistance
Compact design with small diameter and light weight for easy installation
Operating temperature range: -40°C to +60°C
Steel wire strength filler protects tube fiber with steel tape armor
Excellent resistance to ultraviolet radiation

Cable Technical Data

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	135
6	1+5	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	135
8	1+5	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	135
12	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	135
24	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	135
36	1+5	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	135
48	1+5	12	1.95±0.1	1.5/1.5	1.6	12.2±0.2	145
60	1+5	12	1.95±0.1	1.5/1.5	1.6	12.2±0.2	145
72	1+6	12	1.95±0.1	2.0/2.0	1.6	12.2±0.2	160
96	1+8	12	1.95±0.1	1.6/3.2	1.6	13.8±0.2	180
144	1+12	12	1.95±0.1	1.8/5.7	1.6	16.7±0.3	230

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
9	Attenuation(max.) (1550nm)	dB/km	≤0.21
9	Attenuation(max.) (1380nm)	dB/km	≤0.35
9	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
10	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
10	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
11	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
11	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
11	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)	dB	≤0.01

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
Two weeks before production completion, we will notify you to arrange shipping
