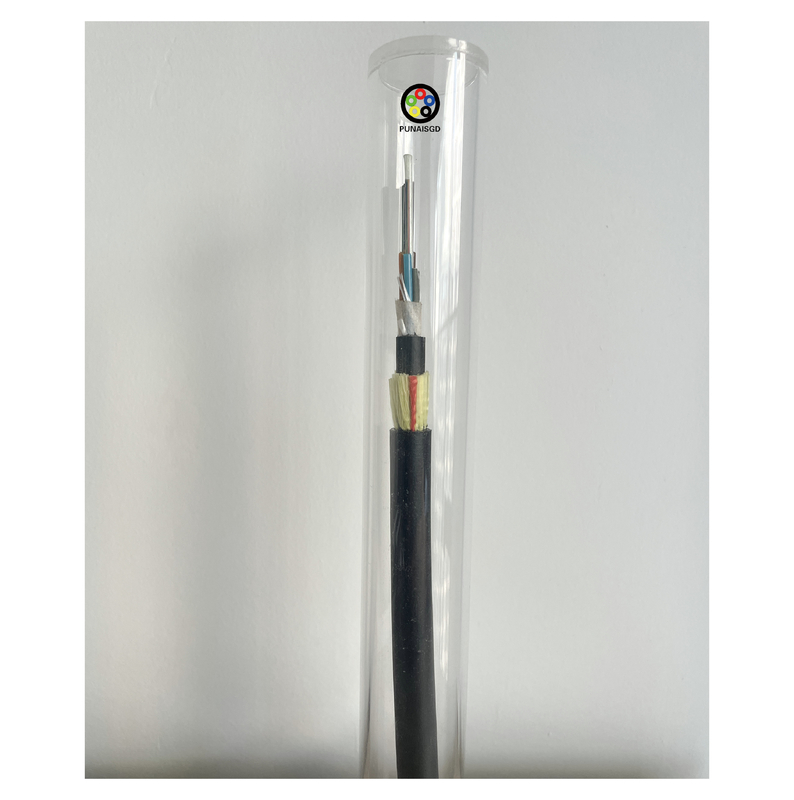

Name: ADSS Fiber Optic Cable 12 Fiber Single-Mode Aerial Self-Supporting
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-12b1.3-SJ-100M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-12b1.3-SJ-100M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    frp adss fiber cable, frp adss fiber optic cable


Type:	ADSS Optical Cable-12b1.3	Fiber Type:	Single-mode
Fiber Count:	12	Oute Sheath:	Black PE
Inner Sheath Material:	PE Black	Installation Method:	Aerial/self Supporting
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-12b1.3
Fiber Type:	Single-mode
Fiber Count:	12
Oute Sheath:	Black PE
Inner Sheath Material:	PE Black
Installation Method:	Aerial/self Supporting
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable 12 Fiber Single-Mode Aerial Self-Supporting

ADSS Fiber Optic Cable 12 Fiber Cable Type Span 100m

Product Specifications

Attribute	Value
Type	ADSS optical cable-12b1.3
Fiber Type	Single-mode
Fiber Count	12
Outer Sheath	Black PE
Inner Sheath Material	PE Black
Installation Method	Aerial/self supporting
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Product Overview

ADSS (All Dielectric Self-supporting Optical Fiber Cable)

Fiber count: 2-144 (G652D)
Loose tube: PBT
Central strength member: FRP
Waterproof layer: cable gel
Outer inner sheath: PE
Operating temperature: -40°C to +70°C
Application: Long distance communication systems, Local area network systems, and Subscriber network systems

Key Features

High tensile strength
All dielectric structure and semi-dry core design
Small diameter and light weight
Self-supporting aerial installation

Ordering Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
	Attenuation(max.) (1550nm)	dB/km	≤0.21
	Attenuation(max.) (1380nm)	dB/km	≤0.35
	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)	dB	≤0.01

Optical Fiber Hardware for ADSS Cables

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information
Sign the contract or Proforma Invoice
After receiving your deposit, we will start to arrange the production
2 weeks before the completion of production, we will notify you to start contacting shipping
