Name: 12 Core Aerial Figure 8 Fiber Optic Cable GYTC8S G652D
Brand: guangzhou fiber cablepuls co ltd
SKU: gytc8s-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: gytc8s-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aerial Figure 8 Fiber Optic Cable, Figure 8 Outdoor Fiber Optic Cable, GYTC8S Fiber Optic Cable


Item NO.:	Gytc8s-12b1.3	TYPE:	FIG.8 Shape
Loose Tube Material:	PBT	Strength Member:	Aramid Yarn & STEEL WIRES
Application:	OVERHEAD	Fiber:	G652D

Item NO.:	Gytc8s-12b1.3
TYPE:	FIG.8 Shape
Loose Tube Material:	PBT
Strength Member:	Aramid Yarn & STEEL WIRES
Application:	OVERHEAD
Fiber:	G652D

12 Core Aerial Figure 8 Fiber Optic Cable GYTC8S G652D

Aerial Figure 8 Fiber Optic Cable GYTC8S - 12 Core Outdoor Optical Fiber Cable

Product Specifications

Attribute	Value
Item NO.	gytc8s-12b1.3
TYPE	FIG.8 shape
Loose Tube Material	PBT
Strength member	aramid yarn & STEEL WIRES
Application	OVERHEAD
Fiber	G652D

Applications

Designed for outdoor aerial self-supporting installation
Ideal for long-distance communication, local trunk lines, CATV & computer networks
Suitable for Telecom or outside plant campus backbone applications
Perfect for Ethernet LAN Network, CCTV, Network Camera, PLC systems
Mechanically rugged design specifically for aerial applications

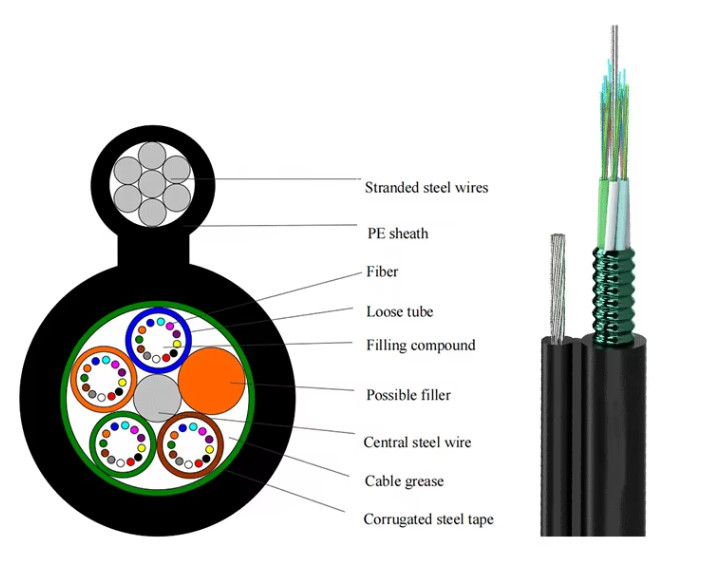

Product Construction

Fiber: 4-12 Core fibers (Single-mode or Multi-mode), Loose tube gel-filled, Color-coding per TIA/EIA 598-A
Central Strength Member: FRP rod (Fibre Reinforcement Plastic) with option for Steel wire rod
Ripcords: 1 ripcord made from Polyester cords or Plastic thread (Color: Red)
Water blocking elements: Water blocking tape
Armor: Corrugated coated steel tape
Outer Jacket: Black UV-resistant HDPE
Messenger Wire: 1.0mm x 7 Galvanized stranded steel wire
Max Tensile: Short term load: 3000N, Span length: 70M

GYTC8S Cable Order Information

Fiber count	6 core \| 8 core \| 12 core
Fiber Type	G652D/G657A1/G657A2
Crush Resistance (Long term)	300 (N/100MM)
Crush Resistance (Short term)	1000(N/100MM)
Overall Diameter	7.8x4mm
Sheath	PE
Strand Steel wire	7*0.8mm
Sample Status	In stock

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
2 weeks before production completion, we will notify you to arrange shipping
