Name: 10km Single Mode Bare Optical Fiber 0.4mm Tight-Buffered for Drones
Brand: guangzhou fiber cablepuls co ltd
SKU: YXGX01
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU

Brand Name: PUNAISGD

Model Number: YXGX01

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: negotiate

Packaging Details: Spool

Delivery Time: 7DAYS

Payment Terms: T/T

Supply Ability: 100000KM

Get Best Price

Product Details

Product Description

Highlight:
                                    SM Single Mode Bare Optical Fiber, 0.4mm Bare Optical Fiber, 10km Bare Optical Fiber


10km Single Mode Bare Optical Fiber 0.4mm Tight-Buffered for Drones

10km Drones Bare Optical Fiber 0.4mm Tight-buffered SM Single Mode Invisible Fibre

Product Overview

High-performance single mode optical fiber designed specifically for drone communication applications, featuring a 0.4mm tight-buffered design with 10km length per spool.

Key Specifications

Model Number: Drones Bare Optical Fiber
Origin: Guangdong, China
Length: 10km/Spool
Application: Drones
Fiber Count: 1
Tight-Buffer Diameter: 0.4 ±0.01mm
Tight-Buffer Material: PVC

Fiber Technical Parameters

No.	Items	Unit	Specification (G.657A2)
1	Mode Field Diameter (1310nm)	μm	8.8±0.4
1	Mode Field Diameter (1550nm)	μm	9.8±0.5
2	Cladding Diameter	μm	125±0.7
3	Cladding Non-Circularity	%	≤0.7
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation (1310nm)	dB/km	≤0.35
9	Attenuation (1550nm)	dB/km	≤0.21
10	Macro-Bending Loss (1turn×7.5mm radius @1550nm)	dB	≤0.2
10	Macro-Bending Loss (1turn×7.5mm radius @1625nm)	dB	≤0.5

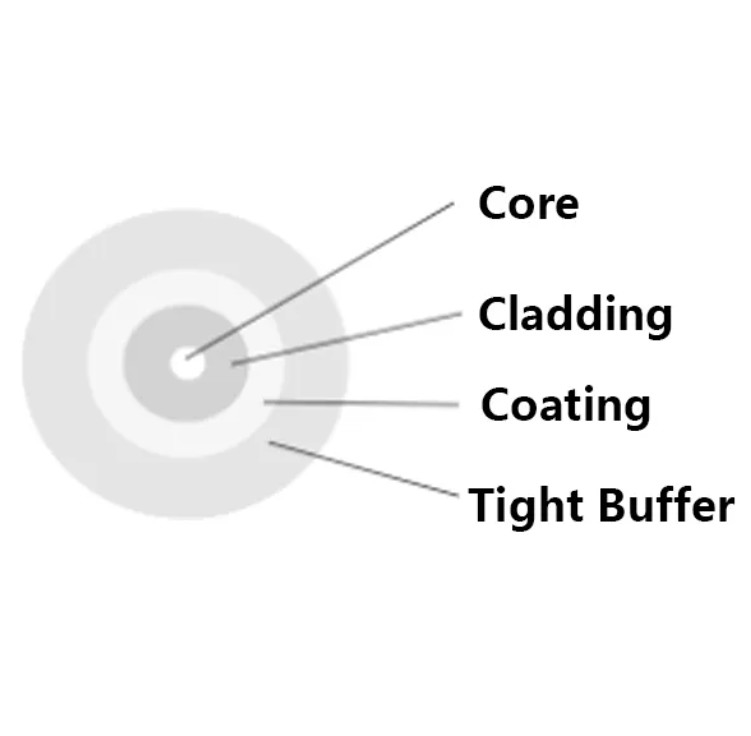

Cable Specifications

Fiber count: 1

Tight-Buffer Diameter: 0.4±0.01mm

Tight-Buffer Material: PVC (Transparent)

Mechanical and Environmental Characteristics

Items	Unit	Specifications
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D
Working temperature	℃	-20~60
Storage temperature	℃	-20~60
