Name: G657A2 Tight-Buffered SM Fiber 0.4mm for Drone Communication 10km
Brand: guangzhou fiber cablepuls co ltd
SKU: YXGX01
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU

Brand Name: PUNAISGD

Model Number: YXGX01

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10km

Price: negotiate

Packaging Details: Spool

Delivery Time: 7DAYS

Payment Terms: T/T

Supply Ability: 100000KM

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                            10km Drones Bare Optical Fiber, 0.43mm Drones Bare Optical Fiber


Application:	Drone /Optical Fiber For UAV/communication	Fiber Type:	G657A2
Color:	Transparent

Application:	Drone /Optical Fiber For UAV/communication
Fiber Type:	G657A2
Color:	Transparent

G657A2 Tight-Buffered SM Fiber 0.4mm for Drone Communication 10km

10km Drones Bare Optical Fiber 0.4mm/0.43mm Tight-buffered SM Single Mode Invisible Optical Fiber Bare For Communication

Product Attributes

Attribute	Value
Application	drone /Optical fiber for UAV/communication
Fiber type	G657A2
Color	transparent

Product Description

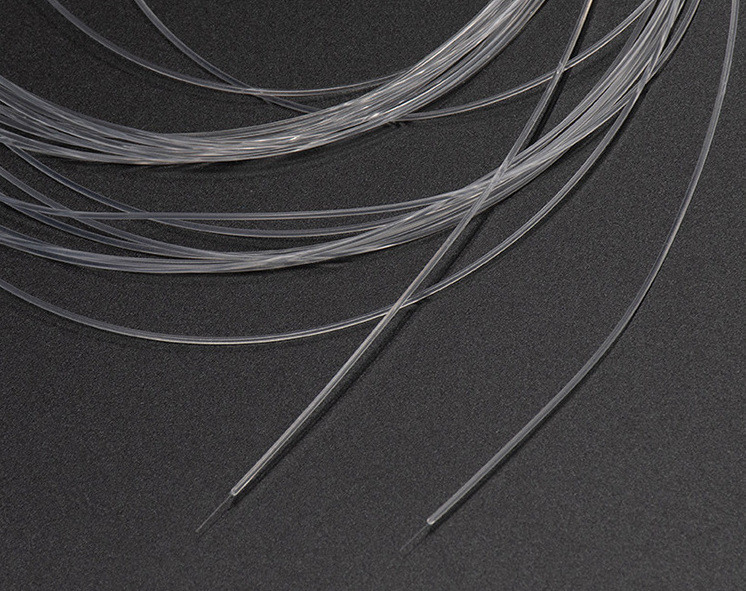

High-performance 10km drone bare optical fiber with tight-buffered single mode design, specially engineered for UAV communication applications.

Item Name	drone bare fiber cable	Item Color	transparent
Fiber Type	G657A2	Diameter	0.4MM/0.43MM/0.38MM/0.35MM
Tensile	>60N	Length	10km
Application	For drones, for communications

Fiber Parameters

No.	Items	Unit	Specification (G.657A2)
1	Mode Field Diameter	1310nm μm 1550nm μm	8.8±0.4 9.8±0.5
2	Cladding Diameter	μm	125±0.7
3	Cladding Non-Circularity	%	≤0.7
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm dB/km 1550nm dB/km	≤0.35 ≤0.21
10	Macro-Bending Loss	1turn×7.5mm radius @1550nm dB 1turn×7.5mm radius @1625nm dB	≤0.2 ≤0.5

Cable Parameters

Items	Specifications
Fiber count	1
Tight-Buffer Diameter	0.4±0.01mm
Tight-Buffer Material	PVC
Material Appearance	Transparent

Mechanical and Environmental Characteristics

Items	Unit	Specifications
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D
Working temperature	℃	-20~60
Storage temperature	℃	-20~60
