Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: gyfxtby-12b1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool ，Φ1200*750mm
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Type:
|
Gyfxtby-12b1.3
|
Fiber Type:
|
Single Mode
|
Fiber Count:
|
2-12
|
Oute Sheath:
|
Black PE/LSZH
|
Inner Sheath Material:
|
P/LSZH
|
Installation Method:
|
Aerial
|
Strength Member Material:
|
2 Frp
|
Cable Diameter:
|
4.8*8mm
|
|
Type:
|
Gyfxtby-12b1.3
|
|
Fiber Type:
|
Single Mode
|
|
Fiber Count:
|
2-12
|
|
Oute Sheath:
|
Black PE/LSZH
|
|
Inner Sheath Material:
|
P/LSZH
|
|
Installation Method:
|
Aerial
|
|
Strength Member Material:
|
2 Frp
|
|
Cable Diameter:
|
4.8*8mm
|
| Attribute | Value |
|---|---|
| Type | gyfxtby-12b1.3 |
| Fiber Type | Single mode |
| Fiber Count | 2-12 |
| Outer Sheath | Black PE/LSZH |
| Inner Sheath Material | P/LSZH |
| Installation Method | Aerial |
| Strength Member Material | 2 frp |
| Cable Diameter | 4.8*8mm |

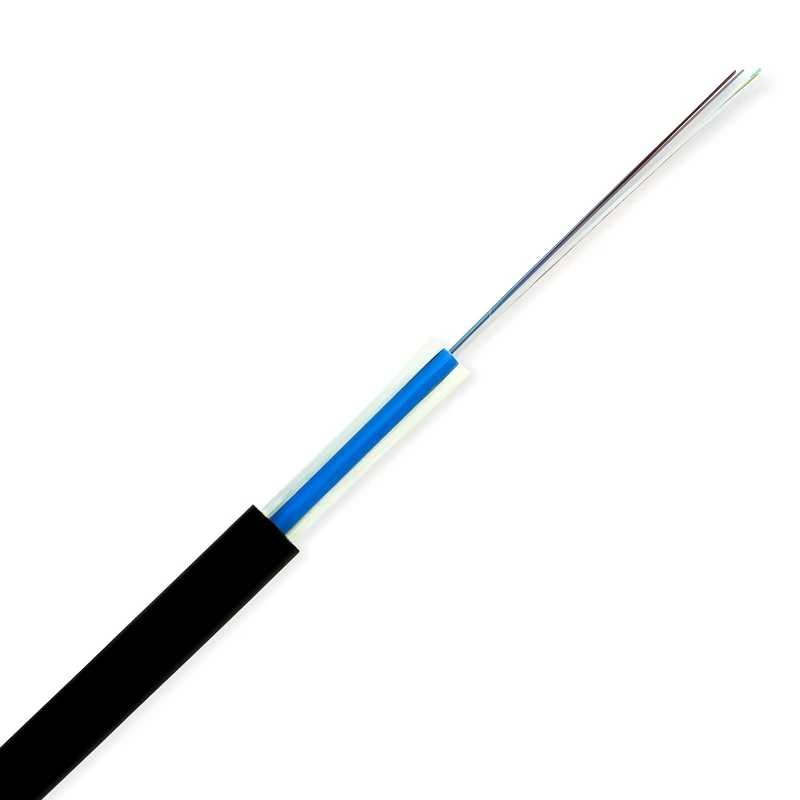

The Dielectric Dry Flat Drop Cable features bare colored optical fibers (available in 1, 2, 4, 6 and 12 counts) with water blocking aramid yarn inside a 3.0mm dry buffer tube. The UV resistant polyethylene outer jacket encases the buffer tube along with 2 dielectric FRP strength members. All materials meet EU RoHS Directive standards.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | ||
| 1550 nm | <0.22 dB/km | <0.23 dB/km |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install Span with 1% Sag |
|---|---|---|---|---|---|
| 2~12 | 4.5*8.0 | 39 | 1800 | 2000 | 100m (Light), 80m (Medium), 50m (Heavy) |
| 14~24 | 4.9*8.4 | 45 | 1800 | 2000 | 80m (Light), 60m (Medium), 40m (Heavy) |
When installing aerial cables, ensure proper tension, maintain safe distance from power lines, consider environmental factors, and follow recommended span lengths for optimal performance.
