Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: gyfxtby-12b1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool ，Φ1200*750mm
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Type:
|
Gyfxtby-12b1.3
|
Fiber Type:
|
Single Mode
|
Fiber Count:
|
2-12
|
Oute Sheath:
|
Black PE/LSZH
|
Inner Sheath Material:
|
P/LSZH
|
Installation Method:
|
Aerial
|
Strength Member Material:
|
2 Frp
|
Cable Diameter:
|
4.8*8mm
|
|
Type:
|
Gyfxtby-12b1.3
|
|
Fiber Type:
|
Single Mode
|
|
Fiber Count:
|
2-12
|
|
Oute Sheath:
|
Black PE/LSZH
|
|
Inner Sheath Material:
|
P/LSZH
|
|
Installation Method:
|
Aerial
|
|
Strength Member Material:
|
2 Frp
|
|
Cable Diameter:
|
4.8*8mm
|
| Attribute | Value |
|---|---|
| Type | gyfxtby-12b1.3 |
| Fiber Type | Single mode |
| Fiber Count | 2-12 |
| Outer Sheath | Black PE/LSZH |
| Inner Sheath Material | P/LSZH |
| Installation Method | Aerial |
| Strength Member Material | 2 frp |
| Cable Diameter | 4.8*8mm |

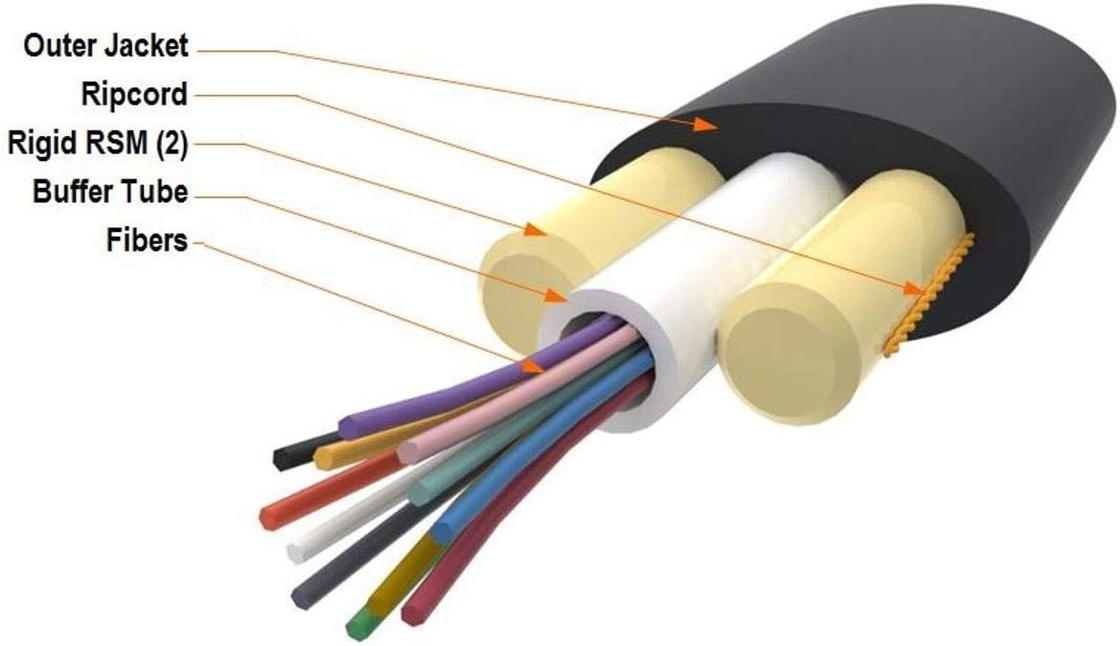

Dielectric Dry Flat Drop Loose Tube Fiber Cable Single Mode 9/125 OS2 with Polyethylene Jacket. The cable is composed of bare colored optical fibers (available in 1, 2, 4, 6 and 12 fiber counts) with water blocking aramid yarn inside a 3.0mm dry buffer tube. The UV resistant polyethylene outer jacket encases the buffer tube along with 2 dielectric FRP strength members. All component materials meet the EU RoHS Directive standard.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation (+20°C) | 850 nm | <3.0 dB/km | <3.3 dB/km | |
| 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | ||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | ||
| Bandwidth | 850 nm | >500 MHz-km | >200 MHz-km | |
| 1300 nm | >500 MHz-km | >500 MHz-km | ||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | ||
| Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install Span with 1% Sag |
|---|---|---|---|---|---|
| 2~12 | 4.5*8.0 | 39 | 1800 (Short Term) 750 (Long Term) | 2000 (Short Term) 800 (Long Term) | 100m (Light) 80m (Medium) 50m (Heavy) |
| 14~24 | 4.9*8.4 | 45 | 1800 (Short Term) 750 (Long Term) | 2000 (Short Term) 800 (Long Term) | 80m (Light) 60m (Medium) 40m (Heavy) |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install Span with 1% Sag |
|---|---|---|---|---|---|
| 2~12 | 6.5 | 35 | 1000 (Short Term) 400 (Long Term) | 1000 (Short Term) 300 (Long Term) | 80m (Light) 50m (Medium) 30m (Heavy) |
| 14~24 | 7.0 | 40 | 1200 (Short Term) 500 (Long Term) | 1000 (Short Term) 300 (Long Term) | 70m (Light) 40m (Medium) 20m (Heavy) |
| Mechanical Performance | Standard |
|---|---|
| Max Tension Performance | IEC 60794-1-2-E |
| Max. Operation Tension | IEC 60794-1-2-E1 |
| Crush Test | IEC 6079 -1-2-E3 |
| Impact Test | IEC 60794-1-2-E4 |
| Repeated Bending | IEC 60794-1-2-E6 |
| Torsion Test | IEC 60794-1-2-E7 |
| Cable bend | IEC 60794-1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794-1-2-F1 |
| Water Penetration | IEC 60794-1-2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
When installing aerial cables, ensure proper tension, maintain safe distance from power lines, consider environmental factors, and follow recommended span lengths for optimal performance.
