ADSS Fiber Optic Cable 300M Span Single Mode Aerial Installation

Name: ADSS Fiber Optic Cable 300M Span Single Mode Aerial Installation
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-96b1.3-DJ-300M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-96b1.3-DJ-300M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Double Jackets ADSS Fiber Optic Cable, 300M Span ADSS Fiber Optic Cable, Self-Supporting ADSS Fiber Optic Cable


Type:	ADSS Optical Cable-96b1.3-300m	Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT	Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-96b1.3-300m
Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable 300M Span Single Mode Aerial Installation

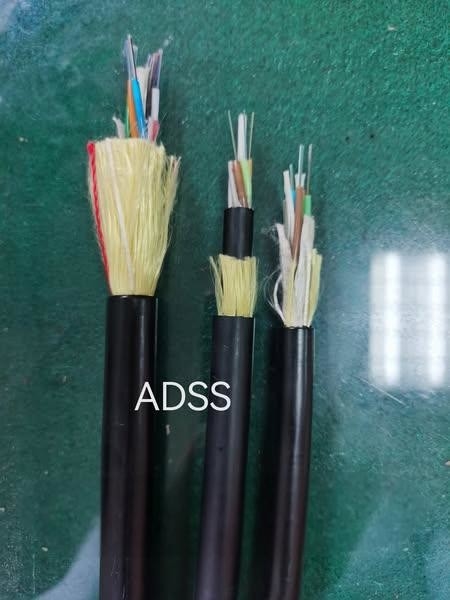

ADSS Fiber Optic Cable 300M Span All Dielectric Self-Supporting Double Jackets Optical Fiber Cable

Product Specifications

Attribute	Value
Type	ADSS optical cable-96b1.3-300m
Fiber Type	Single mode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Inner Sheath Material	PE/AT
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Product Overview

The self-supporting aerial cable is designed for aerial self-supporting applications at short, medium, and long-span distances. ADSS cable offers a rapid and economical means for deployment by by cable television operators, telephone companies, and power utilities.

This cable is ideal for high voltage, middle, and small span conditions in Power Transmission systems or challenging terrain such as river-spanning and mountainous areas. Its all-dielectric structure provides excellent anti-thunderstorm properties as it contains no metal components, making it perfectly adapted to harsh weather conditions.

Ordering Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
2	Cladding Diameter	μm	125.0±1.0

Key Benefits

All-dielectric construction eliminates need for metal support structures, reducing installation costs
Designed to withstand high electric fields and perform reliably near high-voltage power lines
Superior weather resistance and tensile strength for harsh environments
Excellent performance in coastal areas and high altitudes

Applications

Optical Fiber Hardware

Ordering Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications and requirements
Sign the contract or Proforma Invoice
After receiving deposit, we arrange production
We notify you 2 weeks before production completion to arrange shipping
