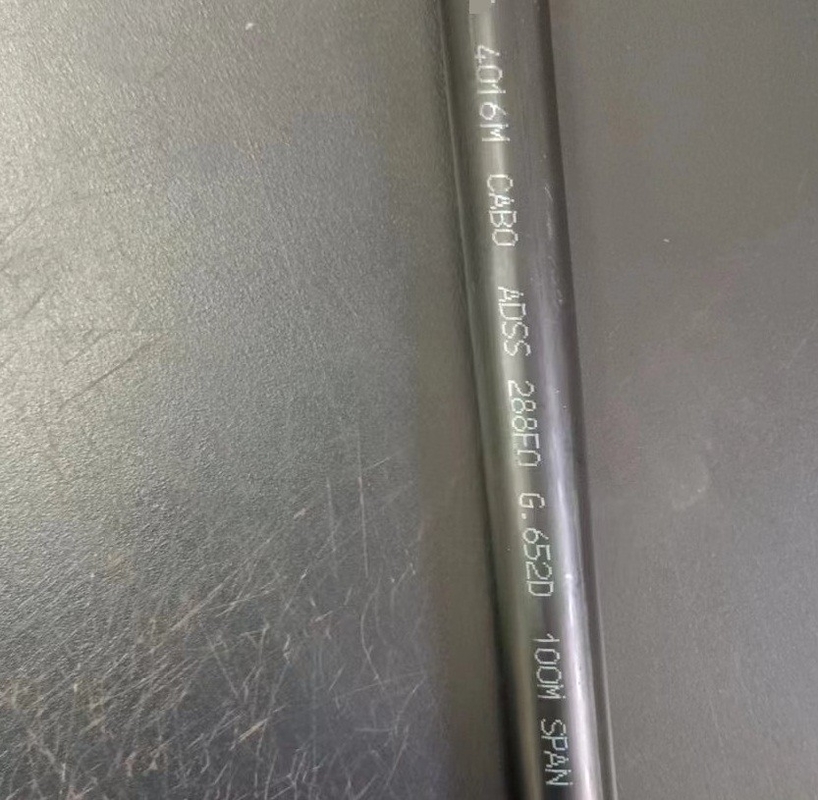

ADSS Fiber Optic Cable 144CT Single Mode Aerial Installation

Name: ADSS Fiber Optic Cable 144CT Single Mode Aerial Installation
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-96b1.3-DJ-300M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-96b1.3-DJ-300M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    144 CT ADSS Fiber Optic Cable, SINGLE-MODE ADSS Fiber Optic Cable


Type:	ADSS Optical Cable-96b1.3-300m	Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT	Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-96b1.3-300m
Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable 144CT Single Mode Aerial Installation

ADSS Fiber Optic Cable 144 CT Single Mode

Designed for uninterrupted and fast data transfer with aerial installation capability.

Product Specifications

Attribute	Value
Type	ADSS optical cable-96b1.3-300m
Fiber Type	Single mode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Inner Sheath Material	PE/AT
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Product Overview

ADSS (All Dielectric Self Supporting) fiber optic cables are lightweight with small diameter and designed for aerial installation with lashing method. The loose tube design with a FRP member and steel tape provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

Ordering Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm/1550nm)	μm	9.2±0.4 / 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation (max.) at various wavelengths	dB/km	1310nm: ≤0.35 1550nm: ≤0.21 1380nm: ≤0.35 1625nm: ≤0.24
10	Attenuation and wavelength	dB/km	1310nm 1285-1330nm: ≤0.04 1550nm 1525-1575nm: ≤0.03 1550nm 1480-1580nm: ≤0.05
11	Dispersion	ps/(nm.km)	1288-1339nm: ≥-3.5, ≤3.5 1271-1360nm: ≥-5.3, ≤5.3 1480-1580nm: ≤20 1550nm: ≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm²•km)	≤0.092
14	Typical value	ps/(nm²•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Key Benefits

Dielectric design eliminates the need for metal support structures, reducing installation costs
Withstands high electric fields and performs reliably near high-voltage power lines without electromagnetic interference
Superior weather resistance and tensile strength for harsh environments including coastal areas and high altitudes

Applications

ADSS cables are ideal for various aerial installations including:

Compatible Hardware

Supplier Profile

Ordering Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
