ADSS Fiber Optic Cable Aerial PE Sheath Single Mode Multimode

Name: ADSS Fiber Optic Cable Aerial PE Sheath Single Mode Multimode
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS fiber optic cable
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS fiber optic cable

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    120m ADSS Fiber Optic Cable, 100m ADSS Fiber Optic Cable, 200m ADSS Fiber Optic Cable


Type:	ADSS Fiber Optic Cable	Fiber Type:	Single Mode/multimode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Installation Method:	Aerial	Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day	HS Code:	854470000

Type:	ADSS Fiber Optic Cable
Fiber Type:	Single Mode/multimode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day
HS Code:	854470000

ADSS Fiber Optic Cable Aerial PE Sheath Single Mode Multimode

ADSS Fiber Optic Cable 80m 100m 120m 200m Span

Product Specifications

Attribute	Value
Type	ADSS fiber optic cable
Fiber Type	Single mode/multimode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Production Capacity	200km Per Day
HS Code	854470000

Product Description

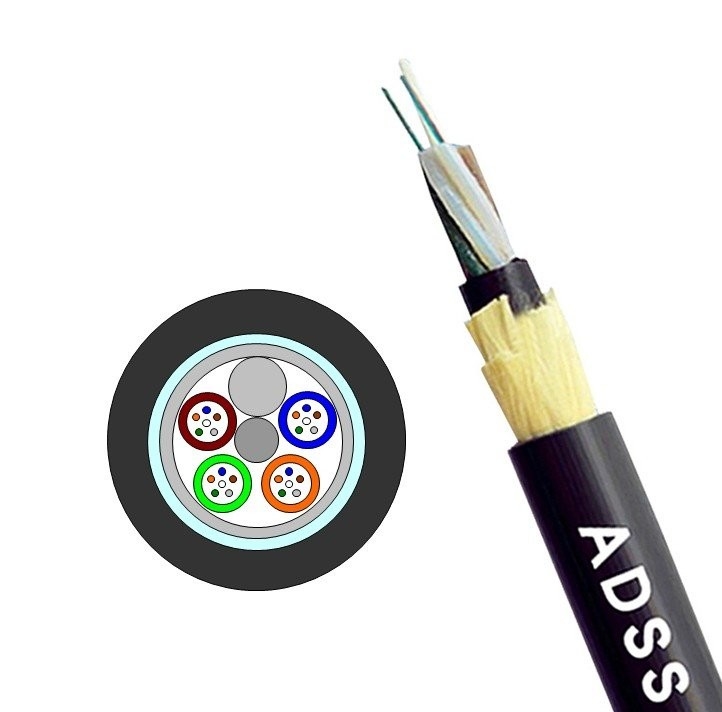

The ADSS optical cable features a loose sheathed twisted structure with fibers enclosed in a high modulus polyester loose tube. A waterproof compound fills the tube to protect against moisture. The loose tube and filler rope twist around a non-metallic FRP central reinforcement core, forming a robust cable core with water-blocking grease for additional protection.

Outer Structure

The cable core is covered with an extruded PE inner sheath, followed by two-way twisting with two layers of aramid yarn for enhanced strength. The outer end is protected with either a PE jacket or electric corrosion-resistant (AT) jacket for durability in various environmental conditions.

Installation Advantages

Infrastructure Efficiency: Can be installed on existing power line pole towers, eliminating need for additional structures
Uninterrupted Construction: Installation proceeds without power outages, ensuring continuous communication

Ordering Specifications

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm/1550nm)	μm	9.2±0.4 / 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation (max.) at various wavelengths	dB/km	1310nm: ≤0.35, 1550nm: ≤0.21, 1380nm: ≤0.35, 1625nm: ≤0.24

Key Benefits

Dielectric design eliminates need for metal support structures, reducing installation costs
Withstands high electric fields near power lines without electromagnetic interference
Superior weather resistance and tensile strength for harsh environments

Optical Fiber Hardware

How to Place an Order

Send your purchase intention to: cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, and quantity
Sign the contract or Proforma Invoice
Production begins after receiving your deposit
Shipping arrangements begin 2 weeks before production completion
