ADSS Fiber Optic Cable Aerial HDPE G652D 12-48 Fibers 100m Span

Name: ADSS Fiber Optic Cable Aerial HDPE G652D 12-48 Fibers 100m Span
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS fiber optic cable 100m
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS fiber optic cable 100m

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    500m ADSS Fiber Optic Cable, 100m ADSS Fiber Optic Cable, Aerial HDPE ADSS Fiber Optic Cable


Type:	ADSS Fiber Optic Cable 100m	Fiber Type:	Single Mode/multimode
Fiber Count:	12/24/48	Oute Sheath:	Black PE
Installation Method:	Aerial	Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day	HS Code:	854470000
Transport Package:	Wooden Drum Or As Per Customer′s Request	Specification:	100X100X70 Cm

Type:	ADSS Fiber Optic Cable 100m
Fiber Type:	Single Mode/multimode
Fiber Count:	12/24/48
Oute Sheath:	Black PE
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day
HS Code:	854470000
Transport Package:	Wooden Drum Or As Per Customer′s Request
Specification:	100X100X70 Cm

ADSS Fiber Optic Cable Aerial HDPE G652D 12-48 Fibers 100m Span

ADSS Fiber Optic Cable - Aerial HDPE G652D Non Metallic

Product Specifications

Type	ADSS fiber optic cable 100m
Fiber Type	Single mode/multimode
Fiber Count	12/24/48
Outer Sheath	Black PE
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Production Capacity	200km Per Day
HS Code	854470000
Transport Package	Wooden Drum or as Per Customer's Request
Specification	100X100X70 cm

Product Description

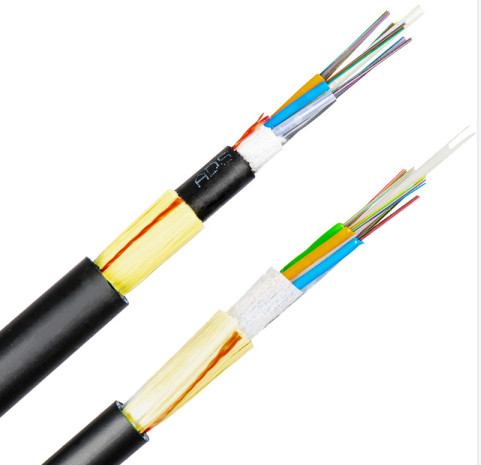

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

ADSS Cable Order Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters

No.	Items	Unit	Specification G.652D
1	Mode Field Diameter	1310nm μm 1550nm μm	9.2±0.4 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm dB/km 1550nm dB/km 1380nm dB/km 1625nm dB/km	≤0.35 ≤0.21 ≤0.35 ≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm dB/km 1550nm 1525-1575nm dB/km 1550nm 1480-1580nm dB/km	≤0.04 ≤0.03 ≤0.05
11	Dispersion	1288-1339nm ps/(nm.km) 1271-1360nm ps/(nm.km) 1480-1580nm ps/(nm.km) 1550nm ps/(nm.km)	≥-3.5, ≤3.5 ≥-5.3, ≤5.3 ≤20 ≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Benefits of ADSS Cable

Relies solely on dielectric properties, eliminating the need for metal support structures and reducing installation costs
Designed to withstand high electric fields, performing reliably near high-voltage power lines without interference from electromagnetic fields
Superior weather resistance and tensile strength for harsh environments like coastal areas and high altitudes

Applications of ADSS Cables

Optical Fiber Hardware for ADSS Cables

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other details
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to start shipping arrangements
