Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH

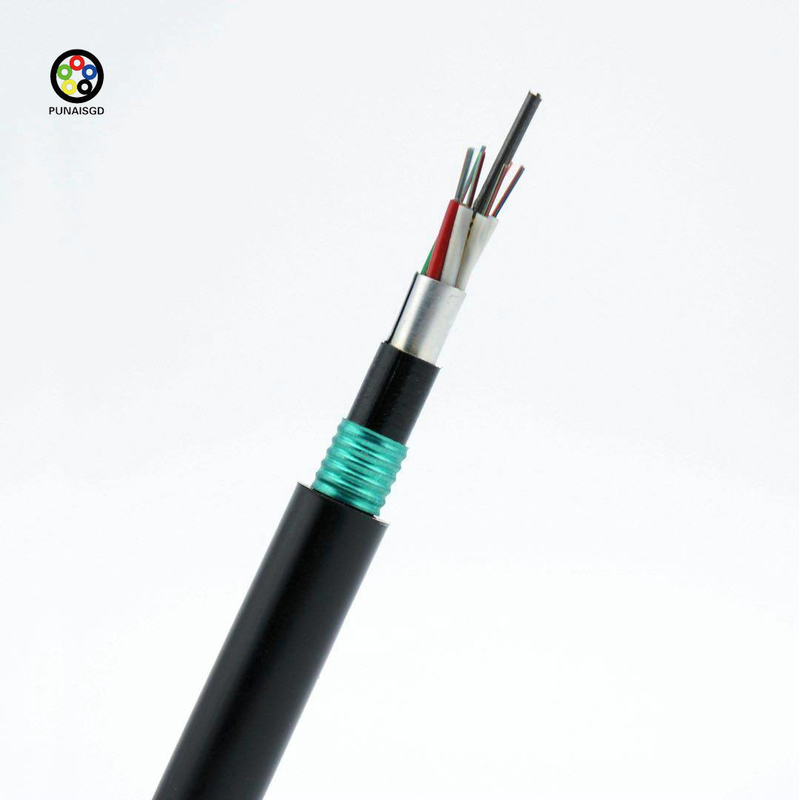

Model Number: GYTA53-36B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Item No.:
|
GYTA53-12B1.3
|
Jacket Color:
|
Black
|
Jacket Material:
|
PE/LSZH
|
Fiber Type:
|
G.652D
|
Installation Method:
|
Direct Buried
|
Outer Diameter:
|
13 Mm
|
Armored Type:
|
Single Armor Double Jacket
|
Armored Material:
|
Steel Tape/Aluminum
|
|
Item No.:
|
GYTA53-12B1.3
|
|
Jacket Color:
|
Black
|
|
Jacket Material:
|
PE/LSZH
|
|
Fiber Type:
|
G.652D
|
|
Installation Method:
|
Direct Buried
|
|
Outer Diameter:
|
13 Mm
|
|
Armored Type:
|
Single Armor Double Jacket
|
|
Armored Material:
|
Steel Tape/Aluminum
|
| Attribute | Value |
|---|---|
| Item No. | GYTA53-12B1.3 |
| Jacket Color | Black |
| Jacket Material | PE/LSZH |
| Fiber Type | G.652D |
| Installation Method | Direct Buried |
| Outer Diameter | 13 mm |
| Armored Type | Single Armor Double Jacket |
| Armored Material | Steel Tape/Aluminum |
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 135 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 135 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 135 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 135 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 135 |
| 36 | 1+5 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 11.5±0.2 | 135 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 12.2±0.2 | 145 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 12.2±0.2 | 145 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 12.2±0.2 | 160 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.6/3.2 | 1.6 | 13.8±0.2 | 180 |
| 144 | 1+12 | 12 | 1.95±0.1 | 1.8/5.7 | 1.6 | 16.7±0.3 | 230 |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| 1 | Mode Field Diameter (1550nm) | μm | 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) (1310nm) | dB/km | ≤0.35 |
| 9 | Attenuation(max.) (1550nm) | dB/km | ≤0.21 |
| 9 | Attenuation(max.) (1380nm) | dB/km | ≤0.35 |
| 9 | Attenuation(max.) (1625nm) | dB/km | ≤0.24 |
| 10 | Attenuation and wavelength (1310nm 1285-1330nm) | dB/km | ≤0.04 |
| 10 | Attenuation and wavelength (1550nm 1525-1575nm) | dB/km | ≤0.03 |
| 10 | Attenuation and wavelength (1550nm 1480-1580nm) | dB/km | ≤0.05 |
| 11 | Dispersion (1288-1339nm) | ps/(nm.km) | ≥-3.5, ≤3.5 |
| 11 | Dispersion (1271-1360nm) | ps/(nm.km) | ≥-5.3, ≤5.3 |
| 11 | Dispersion (1480-1580nm) | ps/(nm.km) | ≤20 |
| 11 | Dispersion (1550nm) | ps/(nm.km) | ≤18 |
| 12 | Zero dispersion wavelength | Nm | 1300-1324 |
| 13 | Zero dispersion slope | ps/(nm2•km) | ≤0.092 |
| 14 | Typical value | ps/(nm2•km) | 0.04 |
| 15 | Largest individual fiber | Ps/√ km | 0.2 |
| 16 | Link design values | Ps/√ km | 0.1 |
| 17 | Two way average (1310nm-1550) | dB | ≤0.01 |
