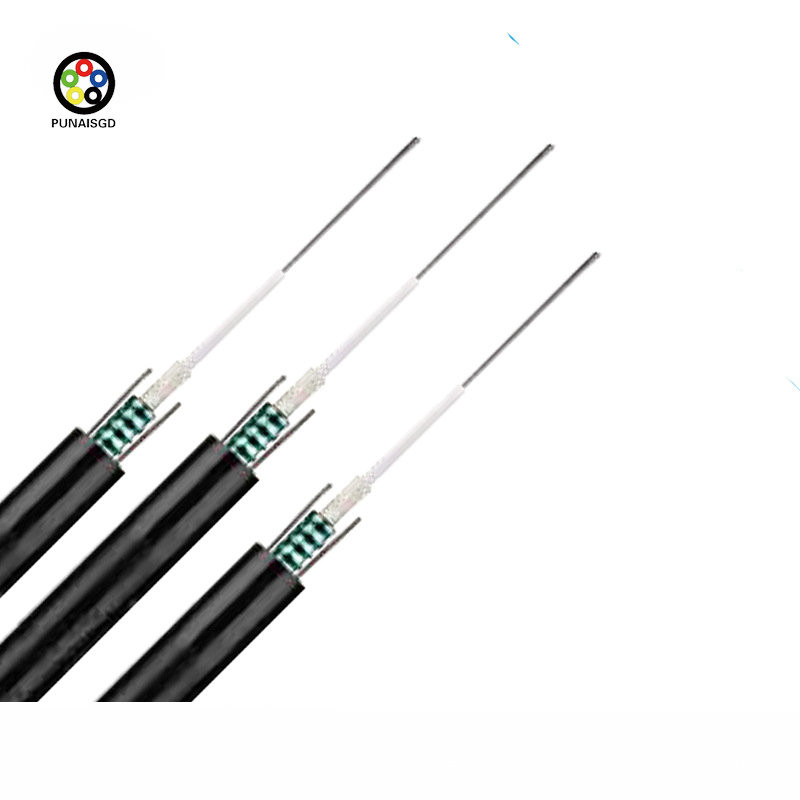

Name: GYXTW Armored Outdoor Fiber Optic Cable 8mm G652D Single Mode
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW-8B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTW-8B1.3

Document: GYXTW- cablepuls.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Armored Outdoor Fiber Optic Cable, GYXTW Outdoor Fiber Optic Cable, 24 Core Outdoor Fiber Optic Cable


Model No:	GYXTW-8B1.3	Use:	Aerial/overhead
Loose Tube Material:	PBT With Jelly	Cable Diameter:	8mm
Samples:	Free	Fiber Grade:	G652D
Waterblocking Material:	Water Blocking Tape Or Filling Compound	Steel Wire:	1.0*2mm
Cable Color:	Black

Model No:	GYXTW-8B1.3
Use:	Aerial/overhead
Loose Tube Material:	PBT With Jelly
Cable Diameter:	8mm
Samples:	Free
Fiber Grade:	G652D
Waterblocking Material:	Water Blocking Tape Or Filling Compound
Steel Wire:	1.0*2mm
Cable Color:	Black

GYXTW Armored Outdoor Fiber Optic Cable 8mm G652D Single Mode

GYXTW Armored Outdoor Fiber Optic Cable

High-performance armored cable for reliable data transmission in demanding outdoor environments. Available in 2, 4, 6, 8, 12, and 24 core configurations with G652D single-mode fiber.

Product Specifications

Attribute	Value
Model No	GYXTW-8B1.3
Use	Aerial/overhead
Loose Tube Material	PBT with Jelly
Cable Diameter	8mm
Samples	Free
Fiber Grade	G652D
Waterblocking Material	Water Blocking Tape Or Filling Compound
Steel Wire	1.0*2mm
Cable Color	Black

Key Features

Robust Armored Design: Steel wire armoring provides exceptional mechanical strength and protection against physical damage
High-Quality G652D Fiber: 12 cores ensure low attenuation and high bandwidth for long-distance transmission
Durable Outer Sheath: UV-resistant polyethylene (PE) sheath protects against moisture and abrasion
Compact Design: 8mm diameter makes installation easy while saving space in cable ducts
Excellent Flexibility: Loose tube structure withstands bending during installation
Waterproof Construction: Water-blocking materials ensure reliable performance in wet conditions
Wide Temperature Range: Operates from -40°C to +70°C for extreme climate applications
Low Attenuation: ≤ 0.36 dB/km @ 1310 nm and ≤ 0.22 dB/km @ 1550 nm
Standards Compliance: Meets ISO, RoHS, and IEC standards
Versatile Applications: Suitable for telecommunications, FTTH, CATV, and outdoor networks

Cable Technical Data

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
2	1	2	1.7±0.1	1.0/1.0	1.6	8.0±0.2	57
4	1	4	1.85±0.1	1.0/1.0	1.6	8.0±0.2	58
6	1	6	1.9±0.1	1.0/1.0	1.6	8.0±0.2	58
8	1	8	2.0±0.1	1.0/1.0	1.6	8.0±0.2	60
12	1	12	2.2±0.1	1.0/1.0	1.6	8.0±0.2	60

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm/1550nm)	μm	9.2±0.4 / 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm/1550nm/1380nm/1625nm)	dB/km	≤0.35 / ≤0.21 / ≤0.35 / ≤0.24
10	Attenuation and wavelength	dB/km	1310nm: ≤0.04, 1550nm: ≤0.03, 1480-1580nm: ≤0.05

Cable Marking & Fiber Colors

Standard marking format: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

Marking is printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom marking available according to client requirements.

Ordering Information

Email: cotton@fibercablepuls.com

Order Process

Send your purchase intention to our email
Our sales team will contact you to confirm specifications and requirements
Sign the contract or Proforma Invoice
We begin production after receiving your deposit
We notify you 2 weeks before production completion to arrange shipping
