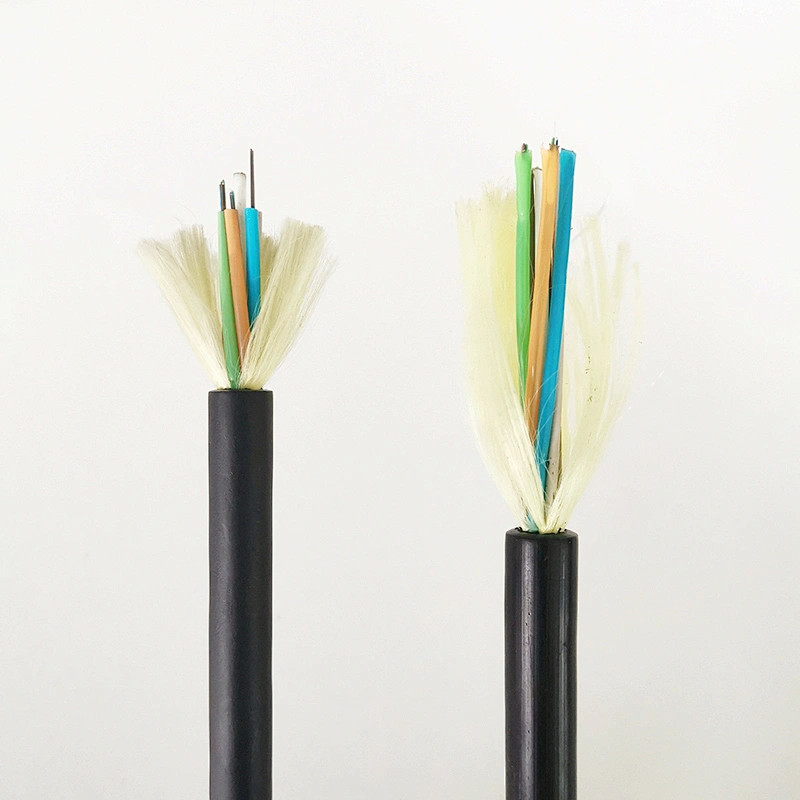

ADSS Fiber Optic Cable 144 Core Aerial G652D Single Mode

Name: ADSS Fiber Optic Cable 144 Core Aerial G652D Single Mode
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-12/24/48b1.3-SJ-100M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-12/24/48b1.3-SJ-100M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    144 Core ADSS Fiber Optic Cable, G652D ADSS Fiber Optic Cable, Aerial ADSS Fiber Optic Cable


Type:	ADSS Optical Cable-12/24/48b1.3-100m	Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT	Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-12/24/48b1.3-100m
Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable 144 Core Aerial G652D Single Mode

ADSS Fiber Optic Cable 144 Core Aerial G652D Fiber Optical Cable

Product Specifications

Attribute	Value
Type	ADSS optical cable-12/24/48b1.3-100m
Fiber Type	Single mode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Inner Sheath Material	PE/AT
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Product Description

ADSS Fiber Optic Cable is safely and securely packaged for delivery. The packaging is designed to protect the cable from damage during storage and shipping while making it easy to unload, unpack, and install.

All ADSS Fiber Optic Cables are shipped using reliable and secure methods with specialized shippers to prevent damage during transit. Each shipment includes tracking information for order monitoring.

ADSS Cable Order Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter	1310nm 1550nm	μm μm	9.2±0.4 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm 1550nm 1380nm 1625nm	dB/km dB/km dB/km dB/km	≤0.35 ≤0.21 ≤0.35 ≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm 1550nm 1525-1575nm 1550nm 1480-1580nm	dB/km dB/km dB/km	≤0.04 ≤0.03 ≤0.05
11	Dispersion	1288-1339nm 1271-1360nm 1480-1580nm 1550nm	ps/(nm.km) ps/(nm.km) ps/(nm.km) ps/(nm.km)	≥-3.5, ≤3.5 ≥-5.3, ≤5.3 ≤20 ≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Benefits of ADSS Cable

Relies solely on dielectric properties, eliminating the need for metal support structures and reducing installation costs
Designed to withstand high electric fields, performing reliably near high-voltage power lines without electromagnetic interference
Superior weather resistance and tensile strength for harsh environments like coastal areas and high altitudes

Applications of ADSS Cables

Optical Fiber Hardware for ADSS Cables

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other details
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
Two weeks before production completion, we will notify you to arrange shipping
