ADSS Fiber Optic Cable 72 Fibers Single Mode Aerial Installation

Name: ADSS Fiber Optic Cable 72 Fibers Single Mode Aerial Installation
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-12/24/48b1.3-SJ-100M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-12/24/48b1.3-SJ-100M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

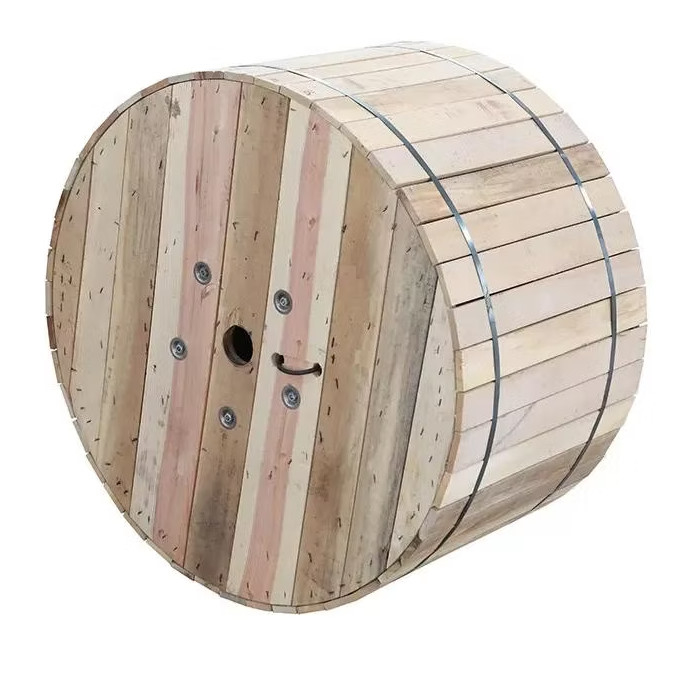

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    72 Fibers ADSS Fiber Optic Cable, ADSS Self Supporting Optical Cable


Type:	ADSS Optical Cable-12/24/48b1.3-100m	Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT	Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-12/24/48b1.3-100m
Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Inner Sheath Material:	PE/AT
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable 72 Fibers Single Mode Aerial Installation

ADSS Fiber Optic Cable - All Dielectric Self-Supporting Optical Cable (72 Fibers)

Product Specifications

Attribute	Value
Type	ADSS optical cable-12/24/48b1.3-100m
Fiber Type	Single mode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Inner Sheath Material	PE/AT
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Key Selection Parameters

Span: Distance between poles
Sagging: Maximum deviation allowed from horizontal, affected by cable weight and climatic conditions
Climatic conditions: Wind and snow create additional traction forces, making climate knowledge essential for installation

Ordering Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
	Attenuation(max.) (1550nm)	dB/km	≤0.21
	Attenuation(max.) (1380nm)	dB/km	≤0.35
	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)	dB	≤0.01

Key Benefits of ADSS Cable

Dielectric design: Eliminates need for metal support structures, reducing installation costs
EMI resistance: Performs reliably near high-voltage power lines without electromagnetic interference
Durability: Superior weather resistance and tensile strength for harsh environments including coastal areas and high altitudes

Applications

Optical Fiber Hardware for ADSS Cables

Manufacturer Profile

Ordering Process

How to place an OEM or customized order:

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other details
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
2 weeks before production completion, we will notify you to arrange shipping
