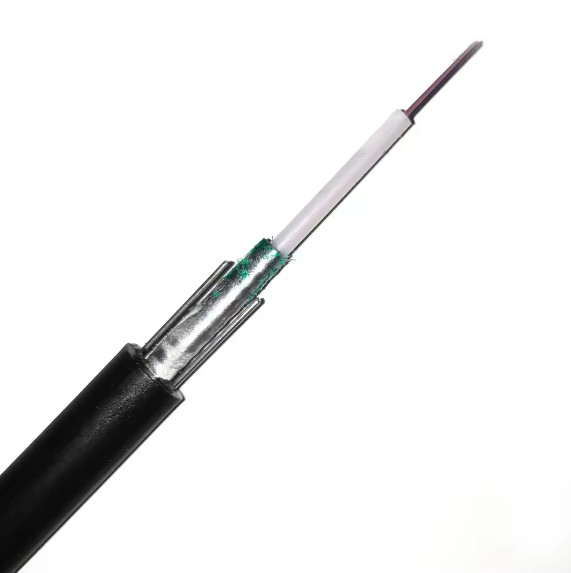

Name: GYXTW Outdoor Fiber Optic Cable Single Mode G652D Aerial 8mm
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW-8B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTW-8B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Central Loose Tube Optic Fiber Cable, GYXTW Optic Fiber Cable Single Mode, Outdoor Fiber Optic Cable Single Mode


Model No:	GYXTW-8/12B1.3	Use:	Aerial/overhead
Loose Tube Material:	PBT With Jelly	Cable Diameter:	8mm
Samples:	Free	Fiber Grade:	G652D
Waterblocking Material:	Water Blocking Tape Or Filling Compound	Steel Wire:	1.0*2mm
Cable Color:	Black

Model No:	GYXTW-8/12B1.3
Use:	Aerial/overhead
Loose Tube Material:	PBT With Jelly
Cable Diameter:	8mm
Samples:	Free
Fiber Grade:	G652D
Waterblocking Material:	Water Blocking Tape Or Filling Compound
Steel Wire:	1.0*2mm
Cable Color:	Black

GYXTW Outdoor Fiber Optic Cable Single Mode G652D Aerial 8mm

Outdoor Fiber Optic Cable Single Mode Central Loose Tube GYXTW

Product Specifications

Attribute	Value
Model No	GYXTW-8/12B1.3
Use	Aerial/overhead
Loose Tube Material	PBT with Jelly
Cable Diameter	8mm
Samples	free
Fiber Grade	G652D
Waterblocking Material	Water Blocking Tape Or Filling Compound
Steel Wire	1.0*2mm
Cable Color	Black

Key Features

Single jelly compound filled loose tube containing up to 24 fibers
Waterproof tape between the steel tape and loose tube with jelly compound
Double coated PE corrugated steel tape under PE sheath
Parallel double steel wire as strength member
Compact structure, light weight, steel tape armored excellent water-proof layer

General Specifications

Cable Type	Central Loose Tube fiber optic cable GYXTW
Fiber Type	SM G.652D
Application	Long-distance communication, LAN
Recommended installation methods	Aerial
Environment	Outdoor
Temperature Range	-40ºC to 70ºC

Cable Technical Data

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
2	1	2	1.7±0.1	1.0/1.0	1.6	8.0±0.2	57
4	1	4	1.85±0.1	1.0/1.0	1.6	8.0±0.2	58
6	1	6	1.9±0.1	1.0/1.0	1.6	8.0±0.2	58
8	1	8	2.0±0.1	1.0/1.0	1.6	8.0±0.2	60
12	1	12	2.2±0.1	1.0/1.0	1.6	8.0±0.2	60

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
9	Attenuation(max.) (1550nm)	dB/km	≤0.21
9	Attenuation(max.) (1380nm)	dB/km	≤0.35
9	Attenuation(max.) (1625nm)	dB/km	≤0.24

Cable Marking & Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter
**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Also can according to client cable marking.

Custom Order Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
