GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: gytc8s-48B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Chat now
Highlight:

Self Support Fiber Optic Cable GYTC8S

,

Figure 8 Overhead Fiber Optic Cable

,

PE Sheath Aerial Fiber Optic Cable

Item NO.:
Gytc8s-48b1.3
TYPE:
FIG.8 Shape
Loose Tube Material:
PBT
Strength Member:
FRP& STEEL WIRES
Application:
OVERHEAD
Fiber:
G652D
Item NO.:
Gytc8s-48b1.3
TYPE:
FIG.8 Shape
Loose Tube Material:
PBT
Strength Member:
FRP& STEEL WIRES
Application:
OVERHEAD
Fiber:
G652D
GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath
Overhead Self-Support Fiber Optic Cable GYTC8S Figure 8 Aerial Fiber Optic Cable PE Sheath
Product Specifications
Attribute Value
Item NO. gytc8s-48b1.3
TYPE FIG.8 shape
Loose Tube Material PBT
Strength member FRP & STEEL WIRES
Application OVERHEAD
Fiber G652D
Product Description

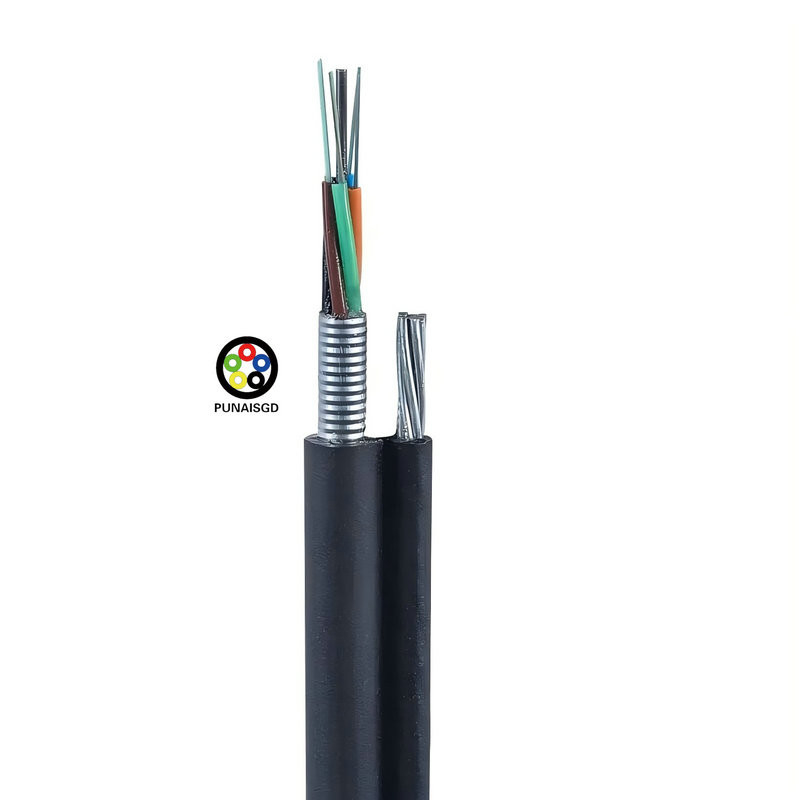

Aerial Figure 8 Fiber Optic Cable offers excellent tension resistance and self-supporting capabilities. The cable features a metallic central strength member forming a compact circular core with integrated water-blocking materials. After applying PSP around the cable core, this section along with stranded wires is completed with a PE sheath to create the distinctive figure-8 structure.

  • Top Rated Figure 8 Fiber Optic Cable Manufacturer
  • 6 to 288 cores available for various applications
  • Trusted by major brands and Fiber Internet Service Providers
  • Free samples available for testing
  • Short lead time for bulk orders
  • 12 Fiber Cable Experts available for customization
  • 25 Years Warranty for Oriental Fiber Cables
GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 0 GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 1 GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 2 GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 3
GYTC8S Cable Order Information
GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 4
Fiber count 6 core, 8 core, 12 core
Fiber Type G652D/G657A1/G657A2
Crush Resistance (Long term) 300 (N/100MM)
Crush Resistance (Short term) 1000(N/100MM)
Overall Diameter 7.8x4mm
Sheath PE
Strand Steel wire 7*0.8mm
Sample Status In stock
GYTC8S Aerial Figure 8 Fiber Optic Cable G652D PE Sheath 5
