Name: GYTA53 Direct Burial Fiber Optic Cable 62.5/125 Multimode Outdoor
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53-24b1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53-24b1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Outdoor Armored Direct Buried Cable, Multi Mode Direct Buried Cable, GYTA53 Direct Buried Cable


Item No.:	GYTA53-24b1.3	Application:	Underground
Armored:	Steel Tape/ALUMINUM TAPE	Apllication:	Outdoor
Strength Member:	FRP/STEEL WIRE	WARRANTY:	25 YEARS

Item No.:	GYTA53-24b1.3
Application:	Underground
Armored:	Steel Tape/ALUMINUM TAPE
Apllication:	Outdoor
Strength Member:	FRP/STEEL WIRE
WARRANTY:	25 YEARS

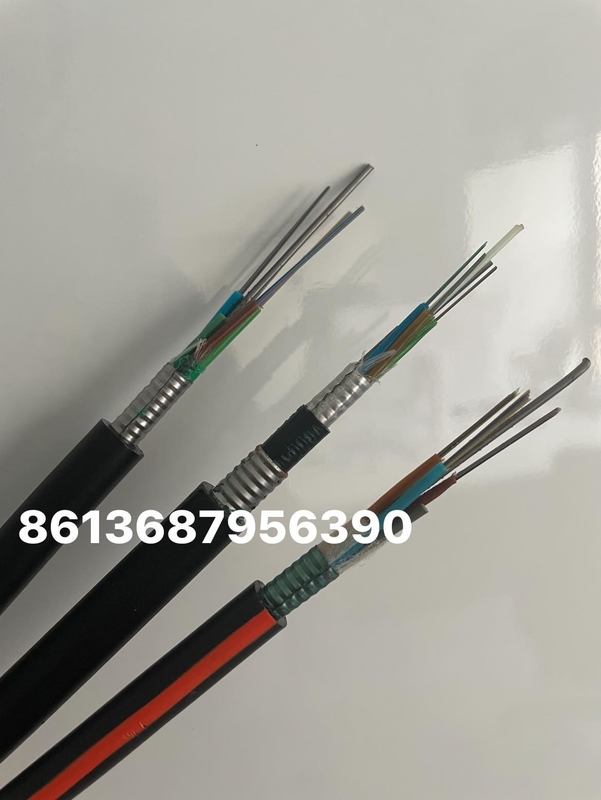

GYTA53 Direct Burial Fiber Optic Cable 62.5/125 Multimode Outdoor

Direct Buried Cable GYTA53 Direct Burial Fiber Optic Cable Multi Mode Out Optical Cable GYTA53 62.5/125

Product Specifications

Attribute	Value
Item No.	GYTA53-24b1.3
Application	Underground
Armored	Steel Tape/Aluminum Tape
Environment	Outdoor
Strength Member	FRP/Steel Wire
Warranty	25 Years

Product Description

GYTA53 Direct Burial Fiber Optic Cable is a multi-mode outdoor optical cable designed for underground applications with superior protection and performance characteristics.

Available in GYTA53 type construction
Precisely controlled fiber length ensures optimal tensile strength and temperature characteristics
Loose tube material provides excellent hydrolysis resistance and high strength
Special filling paste protects optical fibers within the loose tube
Exceptional flexibility and pressing resistance
PE sheath offers superior UV resistance and environmental stress cracking resistance

GYTA53 Cable Technical Specifications

Cable Dimensions

Fiber Count	Fibers Per Tube	Loose Tube Diameter	CSM Diameter	Outer Jacket Thickness	Cable Diameter	Cable Weight
4	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140
6	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
8	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
12	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
24	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
36	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	140
48	12	2.2±0.1	1.6/1.6	1.6	12.2±0.2	140
72	12	2.2±0.1	1.6/3.5	1.6	12.2±0.2	150
96	12	2.2±0.1	2.0/2.0	1.6	12.2±0.2	160
144	12	2.2±0.1	2.0/6.4	1.8	13.8±0.2	180

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation (max.) 1310nm	dB/km	≤0.35
9	Attenuation (max.) 1550nm	dB/km	≤0.21
9	Attenuation (max.) 1380nm	dB/km	≤0.35
9	Attenuation (max.) 1625nm	dB/km	≤0.24
10	Attenuation and wavelength 1310nm 1285-1330nm	dB/km	≤0.04
10	Attenuation and wavelength 1550nm 1525-1575nm	dB/km	≤0.03
10	Attenuation and wavelength 1550nm 1480-1580nm	dB/km	≤0.05
11	Dispersion 1288-1339nm	ps/(nm.km)	≥-3.5, ≤3.5
11	Dispersion 1271-1360nm	ps/(nm.km)	≥-5.3, ≤5.3
11	Dispersion 1480-1580nm	ps/(nm.km)	≤20
11	Dispersion 1550nm	ps/(nm.km)	≤18
12	Zero dispersion wavelength	nm	1300-1324
13	Zero dispersion slope	ps/(nm²•km)	≤0.092
14	Typical value	ps/(nm²•km)	0.04
15	Largest individual fiber	Ps/√km	0.2
16	Link design values	Ps/√km	0.1
17	Two way average 1310nm-1550	dB	≤0.01

Cable Marking & Fiber Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter
**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber

Custom cable marking available according to client requirements.

Supplier Information

Custom Order Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
2 weeks before production completion, we will notify you to arrange shipping
