ADSS Fiber Optic Cable Single Mode 6-144 Fibers Aerial Installation

Name: ADSS Fiber Optic Cable Single Mode 6-144 Fibers Aerial Installation
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-12/24/48b1.3-SJ-100M
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-12/24/48b1.3-SJ-100M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

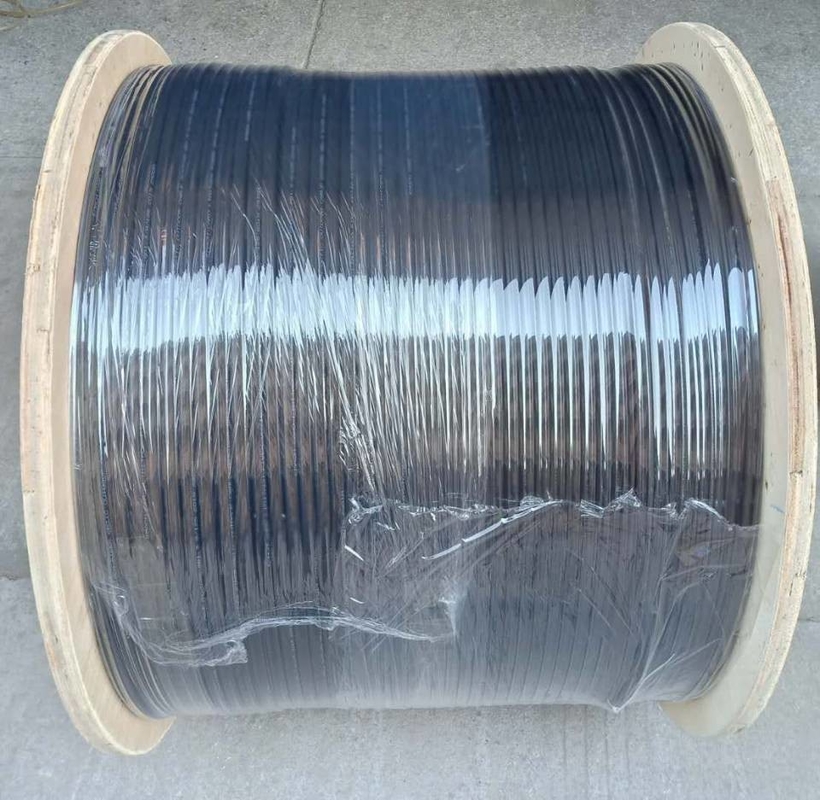

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    1500M ADSS Fiber Optic Cable, 200M ADSS Fiber Optic Cable, Double Jacket ADSS Fiber Optic Cable


Type:	ADSS Optical Cable-12/24/48b1.3	Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144	Oute Sheath:	Black PE
Inner Sheath Material:	PE	Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN	Cable Diameter:	12.5mm

Type:	ADSS Optical Cable-12/24/48b1.3
Fiber Type:	Single Mode
Fiber Count:	6/12/24/36/48/72/96/144
Oute Sheath:	Black PE
Inner Sheath Material:	PE
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Cable Diameter:	12.5mm

ADSS Fiber Optic Cable Single Mode 6-144 Fibers Aerial Installation

ADSS Fiber Optic Cable Double Jacket ADSS Cable Span 200M To 1500M

Product Specifications

Type	ADSS optical cable-12/24/48b1.3
Fiber Type	Single mode
Fiber Count	6/12/24/36/48/72/96/144
Outer Sheath	Black PE
Inner Sheath Material	PE
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Cable Diameter	12.5mm

Product Description

Cable Puls specializes in manufacturing high quality ADSS fiber cables for distributors and fiber internet providers, delivering cost-effective solutions with reliable performance.

Main Features

Number of fibers from 2 to 288
Enhanced technology enables efficient, cost-effective large-scale welding
Customized design by application
Water blocking technology for improved cable core processing
Increased bandwidth and carrying capacity for high-density applications
High-efficiency, low-cost large-scale welding simplifies installation
Excellent performance for spans up to 1000m depending on sag and load conditions

ADSS Cable Order Information

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters

No.	Items	Unit	Specification G.652D
1	Mode Field Diameter	1310nm μm	9.2±0.4
		1550nm μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm dB/km	≤0.35
		1550nm dB/km	≤0.21
		1380nm dB/km	≤0.35
		1625nm dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm dB/km	≤0.04
		1550nm 1525-1575nm dB/km	≤0.03
		1550nm 1480-1580nm dB/km	≤0.05
11	Dispersion	1288-1339nm ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm ps/(nm.km)	≤20
		1550nm ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Benefits of ADSS Cable

Dielectric design eliminates need for metal support structures, reducing installation costs
Performs reliably near high-voltage power lines without electromagnetic interference
Superior weather resistance and tensile strength for harsh environments
Long-term performance in coastal areas and high altitudes

Applications of ADSS Cables

Optical Fiber Hardware for ADSS Cables

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
Two weeks before production completion, we will notify you to arrange shipping
