GYTC8S Aerial Figure 8 Single Mode Fiber Optic Cable G652D

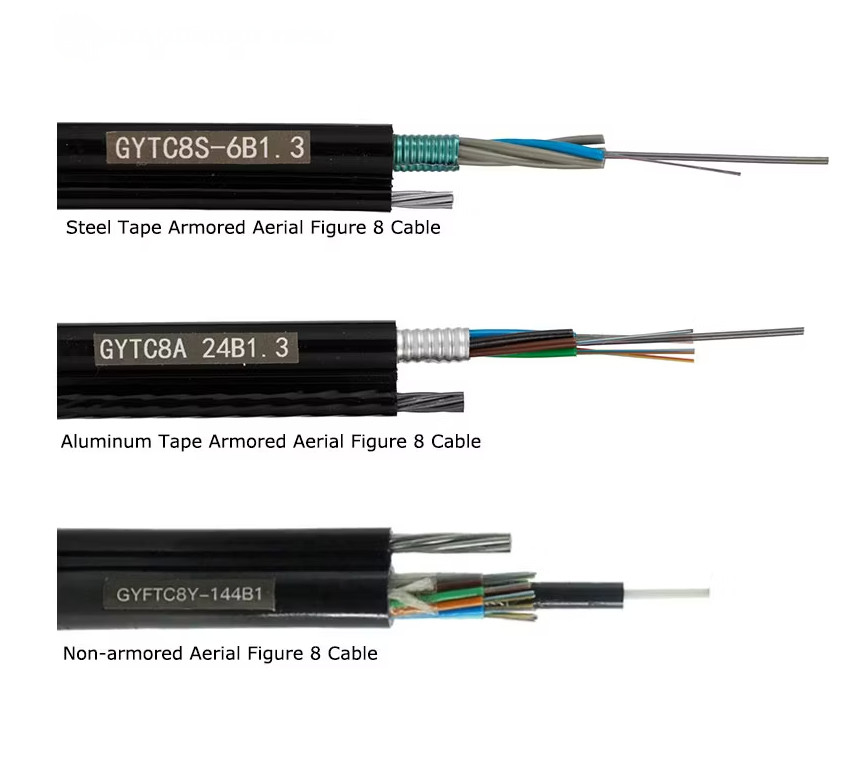

The Aerial Figure 8 Single Mode Outdoor Fiber Optic Cable (GYFTC8S) features fibers positioned in PBT loose tubes filled with tube gel. The tubes (and fillers) are stranded around an FRP central strength member (CSM) to form the cable core. The core is filled with water-blocking compound and armored with corrugated steel tape (CST). Stranded steel wires serve as the messenger, with a figure-8 PE outer jacket completing the construction.

• Figure-8 design enables easy self-supporting aerial installation, reducing costs
• Compact size, lightweight construction for simplified installation
• Hydrolysis-resistant loose tube for enhanced durability
• Tube gel provides critical fiber protection
• Corrugated steel tape (CST) improves moisture resistance and rodent protection

Ideal for self-supporting aerial installations in outdoor environments.

GYTC8S Cable Order Information

Fiber count: 6 core | 8 core | 12 core
Fiber Type: G652D/G657A1/G657A2
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter: 7.8x4mm
Sheath: PE
Strand Steel wire: 7*0.8mm
Sample Status: In stock
