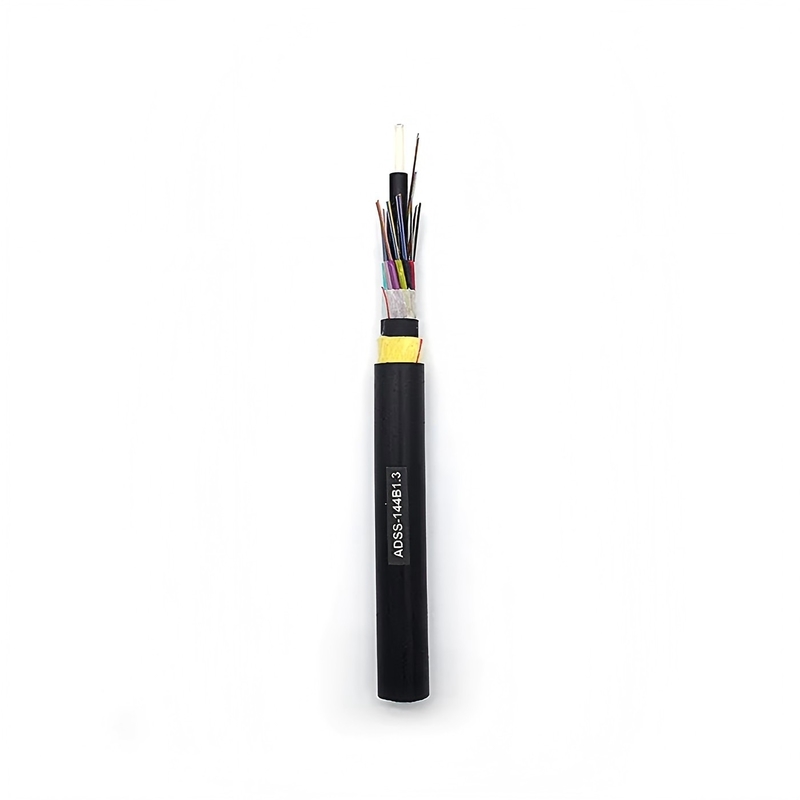

ADSS Fiber Optic Cable 12-144 Fibers Aerial Double Jacket PE/AT

Name: ADSS Fiber Optic Cable 12-144 Fibers Aerial Double Jacket PE/AT
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS fiber optic cable
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS fiber optic cable

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Double Jacket ADSS FIBER OPTIC CABLE, Self Supporting ADSS FIBER OPTIC CABLE, All Dielectric ADSS FIBER OPTIC CABLE


Type:	ADSS Fiber Optic Cable	Fiber Type:	Single Mode/multimode
Fiber Count:	12/24/48	Oute Sheath:	Black PE /AT
Installation Method:	Aerial	Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day	HS Code:	854470000
Transport Package:	Wooden Drum Or As Per Customer′s Request

Type:	ADSS Fiber Optic Cable
Fiber Type:	Single Mode/multimode
Fiber Count:	12/24/48
Oute Sheath:	Black PE /AT
Installation Method:	Aerial
Strength Member Material:	FRP/ARMID YARN
Production Capacity:	200km Per Day
HS Code:	854470000
Transport Package:	Wooden Drum Or As Per Customer′s Request

ADSS Fiber Optic Cable 12-144 Fibers Aerial Double Jacket PE/AT

ADSS FIBER OPTIC CABLE - Double Jacket All-Dielectric Self-Supporting ADSS Cable

Product Specifications

Type	ADSS fiber optic cable
Fiber Type	Single mode/multimode
Fiber Count	12/24/48
Outer Sheath	Black PE /AT
Installation Method	Aerial
Strength Member Material	FRP/ARMID YARN
Production Capacity	200km Per Day
HS Code	854470000
Transport Package	Wooden Drum or as Per Customer's Request

Product Description

Two Jacket and Stranded loose tube design with stable performance and compatibility with all common fiber types.

Track-Resistant outer jacket available for high voltage (≥35KV). Gel-Filled buffer tubes are S-Z stranded. Instead of Aramid yarn or glass yarn, there is no support or messenger wire required. Aramid yarn is used as the strength member to assure tensile and strain Performance.

Lightweight and small diameters reduce the load caused by ice and wind and the load on towers and backdrops. Large span lengths with the largest span over 1000m. Excellent performance of tensile strength and temperature resistance.

Key Features

Good Aramid yarn with excellent tensile performance
Fast delivery - 200km ADSS cable regular production time of about 10 days
Can use glass yarn instead of aramid for rodent protection

Technical Specifications

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
9	Attenuation(max.) (1550nm)	dB/km	≤0.21
9	Attenuation(max.) (1380nm)	dB/km	≤0.35
9	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
10	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
10	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
11	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
11	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
11	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)		≤0.01dB

Benefits of ADSS Cable

Relies solely on dielectric properties, eliminating the need for metal support structures and reducing installation costs
Designed to withstand high electric fields, performing reliably near high-voltage power lines without electromagnetic interference
Superior weather resistance and tensile strength for harsh environments like coastal areas and high altitudes

Applications of ADSS Cables

Optical Fiber Hardware for ADSS Cables

Production Supplier Profile

How to Place an Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other details
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to start shipping arrangements
