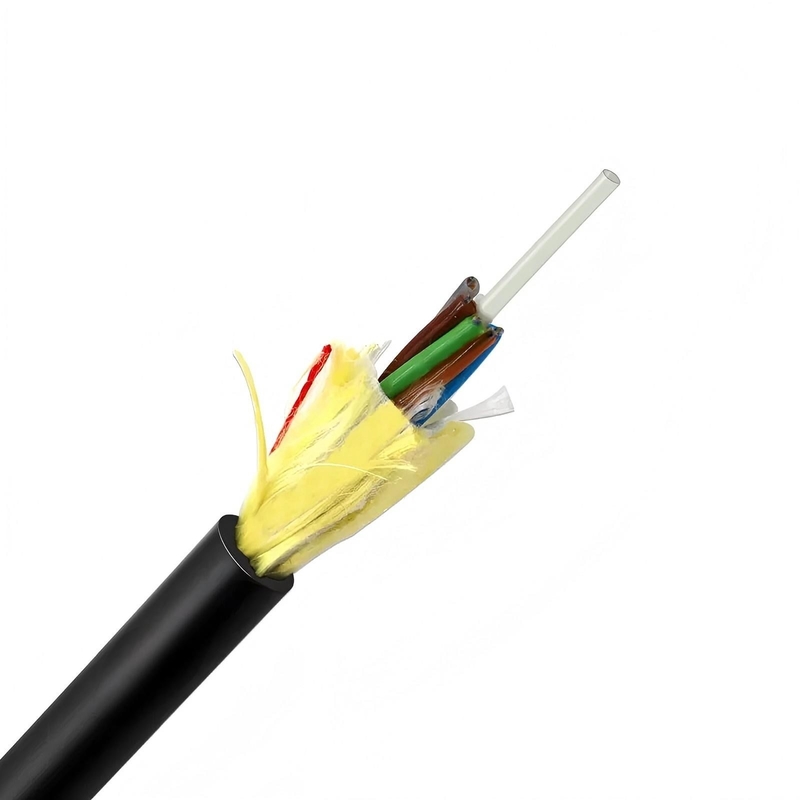

ADSS Fiber Optic Cable SM G652D Single Mode HDPE MDPE Double Jacket

Name: ADSS Fiber Optic Cable SM G652D Single Mode HDPE MDPE Double Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-72b1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-72b1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aerial OFC ADSS Fiber Optical Cable, All Dielectric ADSS Fiber Optical Cable


Type:	ADSS-72b1.3	Out Sheath:	Double Jacket
Fiber:	SM G652D	Samples:	Free Sample
Fiber Mode:	Single Mode	Sheath Material:	HDPE MDPE(Double Jacket)

Type:	ADSS-72b1.3
Out Sheath:	Double Jacket
Fiber:	SM G652D
Samples:	Free Sample
Fiber Mode:	Single Mode
Sheath Material:	HDPE MDPE(Double Jacket)

ADSS Fiber Optic Cable SM G652D Single Mode HDPE MDPE Double Jacket

ADSS Fiber Optical Cable All Dielectric Self Supporting Aerial OFC ADSS Cable

Product Specifications

Attribute	Value
Type	ADSS-72b1.3
Out Sheath	Double Jacket
Fiber	SM G652D
Samples	Free sample
Fiber Mode	Single Mode
Sheath Material	HDPE MDPE (Double jacket)

Product Overview

ADSS fiber optic cable features a compact size, lightweight construction, and robust design, making it ideal for aerial deployments. The cable is available in two structural configurations: central tube structure and stranded structure. The central tube design incorporates fibers within a PBT loose tube filled with water-blocking material, reinforced with aramid yarn, and sheathed with PE (for ≤110KV electric field strength) or AT (for ≥100KV electric field strength) materials.

Product Images

Key Features

Dielectric material-based framework eliminates metallic components
Specialized gel provides optimal fiber protection
FRP central strength members with Dupont aramid yarn reinforcement
Exceptional attenuation performance with high AT capabilities
Reliable operation across temperature variations with anti-aging properties

Technical Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Armid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed

Manufacturing Facility

Frequently Asked Questions

Why choose us?

We are a manufacturer based in Guangzhou, China, operating since 2011. Our factory employs 11-50 professionals, and we primarily serve the domestic market.

How do we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspections prior to shipment.

Can you ship to my country?

Yes, we can arrange shipping worldwide. If you don't have your own forwarder, we can assist with logistics.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements for a competitive quote and sample production.

What services do we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
