Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYXTW-6B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Model No:
|
GYXTW-12B1.3
|
Use:
|
Aerial
|
Loose Tube Material:
|
PBT With Jelly
|
Cable Diameter:
|
8mm
|
Samples:
|
Free
|
Fiber Grade:
|
G652D
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
Steel Wire:
|
1.0*2mm
|
Cable Color:
|
Black
|
|
Model No:
|
GYXTW-12B1.3
|
|
Use:
|
Aerial
|
|
Loose Tube Material:
|
PBT With Jelly
|
|
Cable Diameter:
|
8mm
|
|
Samples:
|
Free
|
|
Fiber Grade:
|
G652D
|
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
|
Steel Wire:
|
1.0*2mm
|
|
Cable Color:
|
Black
|
| Attribute | Value |
|---|---|
| Model No | GYXTW-12B1.3 |
| Use | Aerial |
| Loose Tube Material | PBT with Jelly |
| Cable Diameter | 8mm |
| Samples | Free |
| Fiber Grade | G652D |
| Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Steel Wire | 1.0*2mm |
| Cable Color | Black |

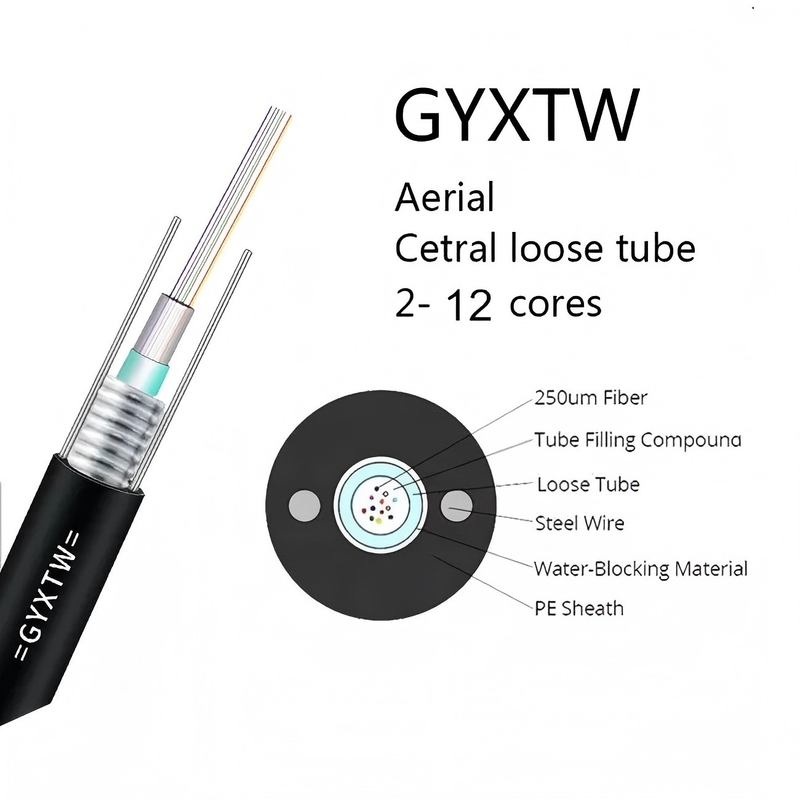

The GYXTW Steel Armored Fiber Optic Cable is designed for outdoor applications including duct, aerial, and direct buried installations. Featuring water-blocking materials for compactness and longitudinal water resistance, this cable delivers reliable performance in demanding environments.
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| 1 | Mode Field Diameter (1550nm) | μm | 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| [Additional rows continue with all fiber parameters from original content] | |||
Standard marking includes company name, fiber cable name, core count, fiber type, production year, and length. Marking is printed every 1 meter.
"G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber. Custom markings available per client requirements.
