Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYTC8S
|
Aromored:
|
Steel Tape
|
Out Sheath Material:
|
PE
|
Installation Method:
|
Aerial
|
Operating Temperature:
|
-40°C To +70°C
|
Application:
|
Outdoor Aerial Installation
|
|
Type:
|
GYTC8S
|
|
Aromored:
|
Steel Tape
|
|
Out Sheath Material:
|
PE
|
|
Installation Method:
|
Aerial
|
|
Operating Temperature:
|
-40°C To +70°C
|
|
Application:
|
Outdoor Aerial Installation
|
| Attribute | Value |
|---|---|
| Type | GYTC8S |
| Armored | Steel tape |
| Outer sheath material | PE |
| Installation Method | Aerial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor aerial installation |

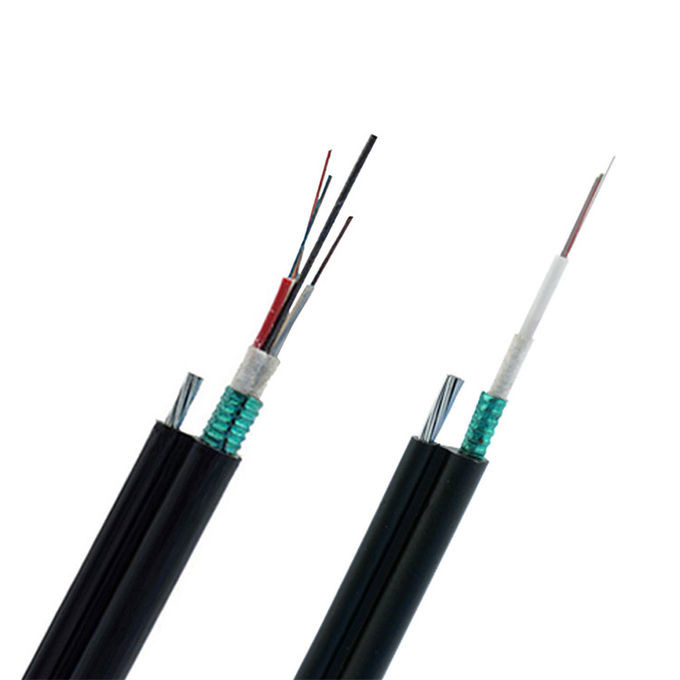

As a self-supporting aerial fiber cable, figure 8 fiber optic cable is designed for long-distance communication and inter-office communication. With steel stranded wire as the self-supporting component, it provides high tensile strength during installation and operation.
The figure 8 shape and steel wire messenger reduce installation costs. This compact cable offers lightweight, flexible construction and is suitable for FTTH cabling networks.
The GYTC8S is a standard self-supporting fiber optic cable, ideal for outdoor aerial use. Its moisture and crush resistance make it suitable for duct and burial applications. The cable features corrugated steel tape armor and polyethylene outer sheath for protection, with a central steel-wire strength member and water-blocking system.
The cable construction includes a stranded loose tube for fiber protection, central steel wire reinforcement, core filler compound for shape consistency, structural fillers, and corrosion-resistant steel wire coating.
| No. of cable | 12 | 24 | 48 |
|---|---|---|---|
| Fiber Model | G.652D | ||
| Design (Strength Member+Tube & Filler) | 1+5 | ||
| Loose Tube Material | PBT | ||
| Diameter (±0.06)mm | 1.9 | 1.9 | 1.9 |
| Thickness (±0.03)mm | 0.25 | 0.25 | 0.30 |
| The Max.Core NO./Tube | 6 | 6 | 12 |
| Filler Rope Material | LDPE | ||
| Diameter (±0.05)mm | 1.65 | 1.65 | 1.9 |
| NO. | 3 | 1 | 1 |
| Armoring Material | Steel tape | ||
| Thickness(+0.03)mm | 0.20 | ||
| Outer Sheath① Material | MDPE | ||
| Thickness (±0.2)mm | 1.5 | ||
| Outer Sheath② Material | MDPE | ||
We are a manufacturer located in Guangzhou, China, operating since 2011. We serve domestic markets with a team of 11-50 professionals.
Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design for a competitive quote and sample production.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
