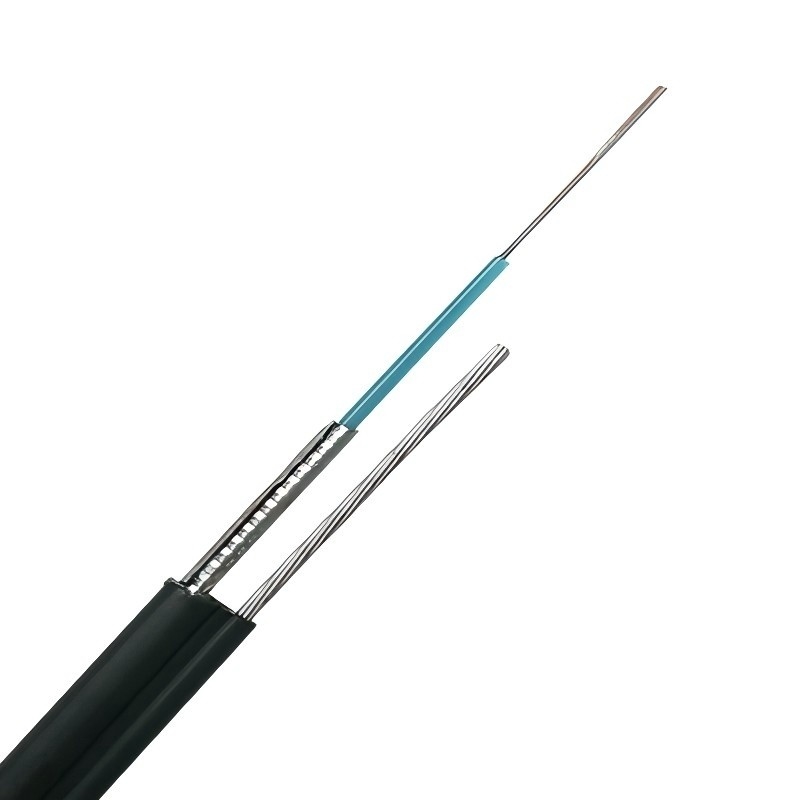

GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket

Name: GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aerial Figure 8 Fieber Optic Cable, Figure 8 Fieber Optic Cable, Non-Armored Figure 8 Cable


Type:	GYXTC8S	Installation Method:	Self-supporting
Cable Type:	Figure 8	Application:	Aerial
Jacket Material:	PE	Cable Color:	Black

Type:	GYXTC8S
Installation Method:	Self-supporting
Cable Type:	Figure 8
Application:	Aerial
Jacket Material:	PE
Cable Color:	Black

GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket

Aerial Figure 8 Fiber Optic Cable Uni-Tube Non-Armored Figure 8 Cable GYXTC8S

Product Specifications

Type	GYXTC8S
Installation Method	Self-supporting
Cable Type	Figure 8
Application	Aerial
Jacket Material	PE
Cable Color	Black

Product Overview

GYXTC8S optical cable features a loose tube cable style with figure-8 configuration, incorporating jelly compound, water-proof tape, and a steel messenger wire. Designed for overhead to premises installation with high strength and tracking-resistant sheath.

Cable Construction

Stranded Wire
PE Sheath
Optical Fiber
Tube Filling Compound
Uni Tube
Cable Filling Compound
Water-blocking Material
PE Sheath

The GYXTC8S type cable incorporates a 250μm optical fiber encased within a slack tube crafted from high-strength material, saturated with hydrophobic gel. The tube is enveloped with longitudinally running steel tape (PSP) with water-blocking substance between layers. Features a steel strand in octagonal configuration within polyethylene jacket.

Detail Images

Key Features

High tensile strength steel wire strand enables self-supporting aerial installation, reducing deployment costs
Superior mechanical and thermal characteristics
Loose tube material resists hydrolysis with considerable strength
Proprietary grease filling protects optical fibers
Dual-layer steel strip (PSP) enhances moisture resistance
Compact diameter makes installation lightweight and straightforward
Available in long lengths with cost-effective pricing

Technical Parameters

Fiber Model	G.652D
Loose Tube	Material	PBT
	Diameter (±0.1)mm	1.8 \| 2.0 \| 2.8
	Thickness (±0.05)mm	0.30
	Water Blocking layer(Material)	Water Blocking Tape
Armoring	Material	Steel Tape
Armoring	Thickness (±0.03)mm	0.2
Messenger Wire	Material	Galvanized steel strand
Messenger Wire	Size (±0.05)mm	2.7mm
Web	Material	MDPE
Web	Size (±0.1)mm	2.0 ×3.0
Outer Sheath①	Material	MDPE
Outer Sheath①	Thickness (±0.1)mm	1.2
Outer Sheath②	Material	MDPE
Outer Sheath②	Thickness (±0.1)mm	1.5
Cable Diameter (±0.5)mm	7.011.5 \| 7.011.5 \| 7.3*13.5
Cable Weight (±10)kg	80 \| 80 \| 94
Min. bending radius	Without Tension: 10.0 × Cable-φ Under Maximum Tension: 20.0 × Cable-φ
Temperature range (℃)	Installation: -20~+60 Transport & Storage: -40~+70 Operation: -40~+70

Company Profile

Frequently Asked Questions

Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We serve domestic markets with a team of 11-50 professionals in our factory.

How can we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspection before shipment.

Can you send products to my country?

Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.

What services can we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
