Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S-8B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Item NO.:
|
GYTC8S-8B1.3
|
TYPE:
|
Fig.8 Shape
|
Application:
|
Outdoor AREIAL
|
Jacket Material:
|
PE/LSZH
|
Fiber Type:
|
G.652D
|
Strength Member:
|
Messenger Wires
|
Outer Diameter:
|
8.5*12.5mm
|
Warranty Period:
|
25 Years
|
|
Item NO.:
|
GYTC8S-8B1.3
|
|
TYPE:
|
Fig.8 Shape
|
|
Application:
|
Outdoor AREIAL
|
|
Jacket Material:
|
PE/LSZH
|
|
Fiber Type:
|
G.652D
|
|
Strength Member:
|
Messenger Wires
|
|
Outer Diameter:
|
8.5*12.5mm
|
|
Warranty Period:
|
25 Years
|
| Item NO. | GYTC8S-8B1.3 |
|---|---|
| TYPE | Fig.8 shape |
| Application | Outdoor AERIAL |
| Jacket Material | PE/LSZH |
| Fiber Type | G.652D |
| Strength member | Messenger wires |
| Outer Diameter | 8.5*12.5mm |
| Warranty Period | 25 years |

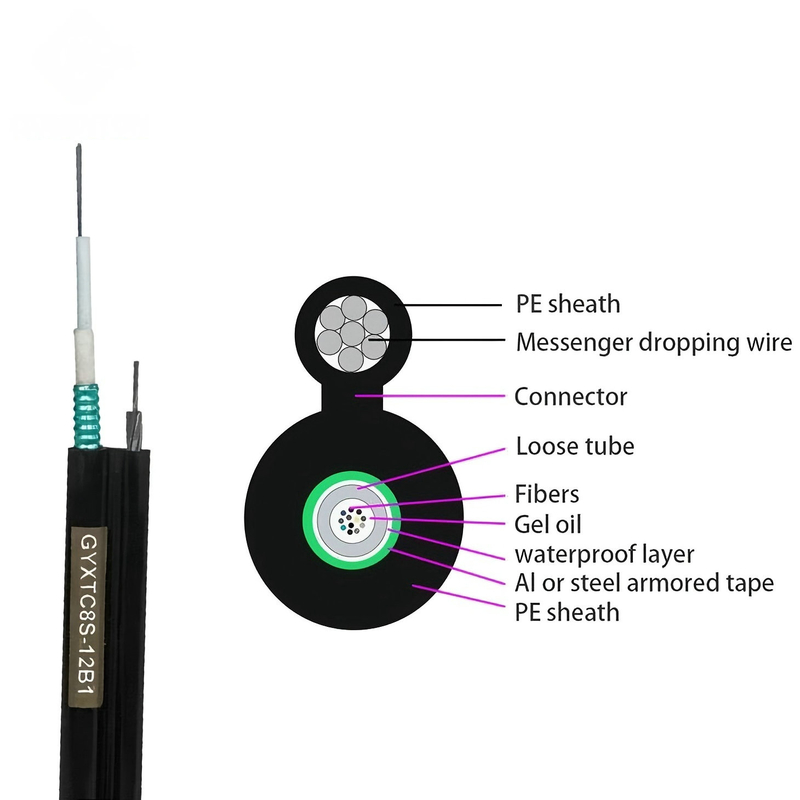

The GYXTC8S Loose Tube Cable features high tensile strength and flexibility in a compact design with steel tape armor for superior crush resistance and anti-bullet properties. The integrated messenger wire provides excellent anti-pull performance and simplified installation.
| No. of cable | 12 | 24 | ||
|---|---|---|---|---|
| Fiber Model: G652D | ||||
| Design (StrengthMember+Tube&Filler) | 1+5 | |||
| Central Strength Member | Material | FRP | Diameter(±0.05)mm | 1.5 |
| Loose Tube | Material | PBT | Diameter(±0.06)mm | 1.7 |
| Thickness(±0.03)mm | 0.32 | |||
| The Max.Core NO./Tube | 6 | |||
| Filler Rope | Material | PP | Diameter(±0.06)mm | 1.7 |
| NO. | 3 | 1 | ||
| Water Blocking Layer(Material) | Flooding Compound | |||
| Outer Sheath① | Material | PE | Thickness(±0.1)mm | 1.2 |
| Outer Sheath② | Material | PE | Thickness(±0.1)mm | 1.8 |
| Web | Material | PE | Size(±0.1)mm | 2.0*2.0 |
| Messenger Wire | Material | Steel stranded | Size(±0.1)mm | 2.7mm(0.9mm×7) |
| Cable Diameter(±0.5)mm(W×H) | 8.5x15.2 | |||
| Cable Weight(±10)kg/km | 100 | |||
| Min. bending radius | Without Tension | 10.0×Cable-φ | Under Maximum Tension | 20.0×Cable-φ |
| Temperature range (℃) | Installation | -20~+60 | Transport&Storage | -40~+70 |
| Operation | -40~+70 | |||
Standard marking includes: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
• Printed every 1 meter
• "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber
• Custom markings available per client requirements
