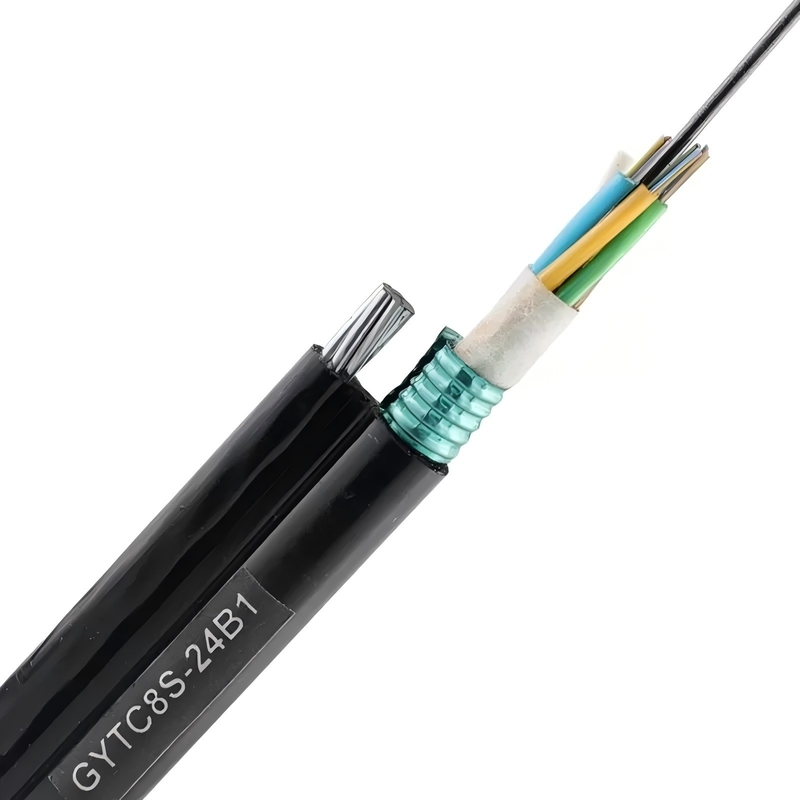

GYTC8S Aerial Figure 8 Fiber Optic Cable 24 Strand G.652D

Central Loose Tube Armored Fiber Patch Cable with 28 Strand or 24 Strand options

The GYXTC8S Loose Tube Cable features high tensile strength and flexibility in a compact design. With steel tape armor, it offers excellent anti-crush and anti-bullet properties. The messenger wire support member provides superior anti-pull performance and easy installation.

The GYTC8s Fig8 Single Mode fiber optic cable is an outdoor self-riding aerial cable with a stranded structure. Its distinctive figure-eight shape combines a steel strand suspension wire above with the main optical cable below, similar to standard GYTS optical cables.

• Step-by-step filling with water-blocking ointment for full-section water-blocking
• Stable fiber excess length control
• Additional attenuation less than 0.02dB/Km after cable formation
• Dispersion value remains unchanged
• Excellent environmental performance (-40℃ to +70℃ operating range)

• Fiber count: 6-8, 10-12, 14-24, 30-72
• Design: Central Steel wires + Stranded Loose Multi-tube Cable
• Fiber type: Single mode G.652.D
• Strength Member: PSP
• Loose Tube: PBT
• Water Blocking Layer: Water Blocking tape
• Outer Sheath: PE
• Attenuation coefficient: @1310nm≤0.35dB; @1550nm≤0.2dB
• Min. bending radius: 10×Cable-φ (without tension), 20×Cable-φ (under maximum tension)

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter

**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom marking available according to client requirements.

1. Send your purchase intention to our email: cotton@fibercablepuls.com
2. Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
3. Sign the contract or Proforma Invoice
4. After receiving your deposit, we will begin production
5. Two weeks before production completion, we will notify you to arrange shipping
