GYFTY53 Direct Buried Fiber Optic Cable G.652D Steel Tape Armored

Name: GYFTY53 Direct Buried Fiber Optic Cable G.652D Steel Tape Armored
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY53-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTY53-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Outdoor Underground Direct Buried Cable, GYTY53 Direct Buried Cable, Stranded Loose Tube Direct Buried Cable


Item No.:	GYFTY53-12B1.3	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Installation Method:	Direct Buried	Outer Diameter:	13 Mm
Armored Type:	Single Armor Double Jacket	Armored Material:	Steel Tape

Item No.:	GYFTY53-12B1.3
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Installation Method:	Direct Buried
Outer Diameter:	13 Mm
Armored Type:	Single Armor Double Jacket
Armored Material:	Steel Tape

GYFTY53 Direct Buried Fiber Optic Cable G.652D Steel Tape Armored

Direct Buried Cable Outdoor Underground Directly Buried Stranded Loose Tube Cable GYTY53

Product Specifications

Attribute	Value
Item No.	GYFTY53-12B1.3
Jacket Color	Black
Jacket Material	PE/LSZH
Fiber Type	G.652D
Installation Method	Direct Buried
Outer Diameter	13 mm
Armored Type	Single Armor Double Jacket
Armored Material	Steel Tape

Product Description

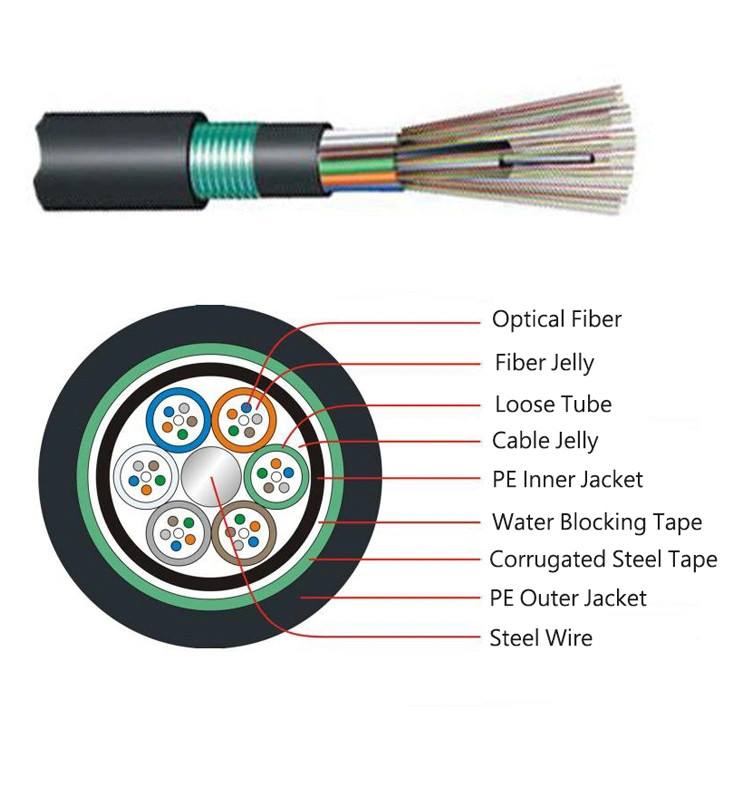

The loose tube fiber cable is filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Key Characteristics

Outdoor loose tube stranded armored optic fiber cable
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensures critical protection of fiber
Crush resistance and flexibility

Standards Compliance

GYTA53 cable complies with standard Y D/T 907-2001 as well as IEC 60794-1

Applications

Used for long-distance communication and local network

Laying Method

Direct burial and duct

GYFTY53 Cable Technical Data

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	135
6	1+5	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	135
8	1+5	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	135
12	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	135
24	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	135
36	1+5	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	135
48	1+5	12	1.95±0.1	1.5/1.5	1.6	12.2±0.2	145
60	1+5	12	1.95±0.1	1.5/1.5	1.6	12.2±0.2	145
72	1+6	12	1.95±0.1	2.0/2.0	1.6	12.2±0.2	160
96	1+8	12	1.95±0.1	1.6/3.2	1.6	13.8±0.2	180
144	1+12	12	1.95±0.1	1.8/5.7	1.6	16.7±0.3	230

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) 1310nm	dB/km	≤0.35
9	Attenuation(max.) 1550nm	dB/km	≤0.21
9	Attenuation(max.) 1380nm	dB/km	≤0.35
9	Attenuation(max.) 1625nm	dB/km	≤0.24
10	Attenuation and wavelength 1310nm 1285-1330nm	dB/km	≤0.04
10	Attenuation and wavelength 1550nm 1525-1575nm	dB/km	≤0.03
10	Attenuation and wavelength 1550nm 1480-1580nm	dB/km	≤0.05
11	Dispersion 1288-1339nm	ps/(nm.km)	≥-3.5, ≤3.5
11	Dispersion 1271-1360nm	ps/(nm.km)	≥-5.3, ≤5.3
11	Dispersion 1480-1580nm	ps/(nm.km)	≤20
11	Dispersion 1550nm	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average 1310nm-1550	dB	≤0.01

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.
Sign the contract or Proforma Invoice.
After receiving your deposit, we will start to arrange the production.
2 weeks before the completion of production, we will notify you to start contacting shipping.
