ADSS Fiber Optic Cable All Dielectric Self-supporting Aerial 6-144 Fibers

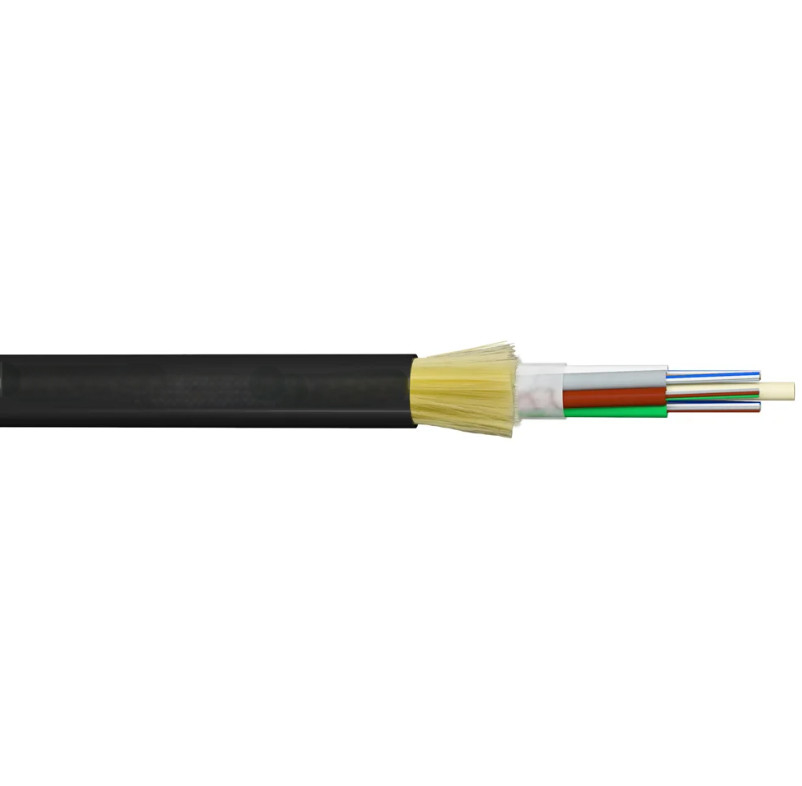

The self supporting aerial cables feature loose tube stranded construction with 250μm fibers positioned into high modulus plastic tubes filled with water-resistant compound. The tubes are stranded around an FRP central strength member, forming a compact cable core covered with PE inner sheath and aramid yarn strength member, completed with PE or AT outer sheath.

All-dialectric self-supporting (ADSS) cables feature an FRP dielectric central strength member with multiple loose tube optical fibres. The UV-stabilized external jacket resists moisture ingress, with operating temperatures from -40°C to +70°C, suitable for installation to 11kV power lines.

• Can be installed without shutting off power
• Light weight and small diameter reduces ice/wind load and tower stress
• Large span lengths capability
• Excellent tensile strength and temperature performance
• 30-year design lifespan

• Dielectric properties eliminate need for metal support structures, reducing installation costs
• Designed to withstand high electric fields near power lines without electromagnetic interference
• Superior weather resistance and tensile strength for harsh environments

1. Send purchase intention to cotton@fibercablepuls.com
2. Our sales team will confirm product specifications and requirements
3. Sign contract or Proforma Invoice
4. Production begins after receiving deposit
5. Shipping arrangements notified 2 weeks before completion
