Model Number: GYTA33-48B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Item No:
|
GYTA33-48B1.3
|
Rodent Protection:
|
Anti-rodent Tape/Steel Wires
|
Jacket Color:
|
Black
|
Jacket Material:
|
Polyethylene
|
Fiber Type:
|
G.652D
|
Application:
|
Underwater Display
|
Armor Type:
|
Steel Wires/ALUMINUM TAPE
|
Armored:
|
Yes
|
|
Item No:
|
GYTA33-48B1.3
|
|
Rodent Protection:
|
Anti-rodent Tape/Steel Wires
|
|
Jacket Color:
|
Black
|
|
Jacket Material:
|
Polyethylene
|
|
Fiber Type:
|
G.652D
|
|
Application:
|
Underwater Display
|
|
Armor Type:
|
Steel Wires/ALUMINUM TAPE
|
|
Armored:
|
Yes
|
| Attribute | Value |
|---|---|
| Item No | GYTA33-48B1.3 |
| Rodent Protection | Anti-rodent tape/Steel wires |
| Jacket Color | Black |
| Jacket Material | Polyethylene |
| Fiber Type | G.652D |
| Application | Underwater display |
| Armor Type | Steel wires/Aluminum tape |
| Armored | Yes |

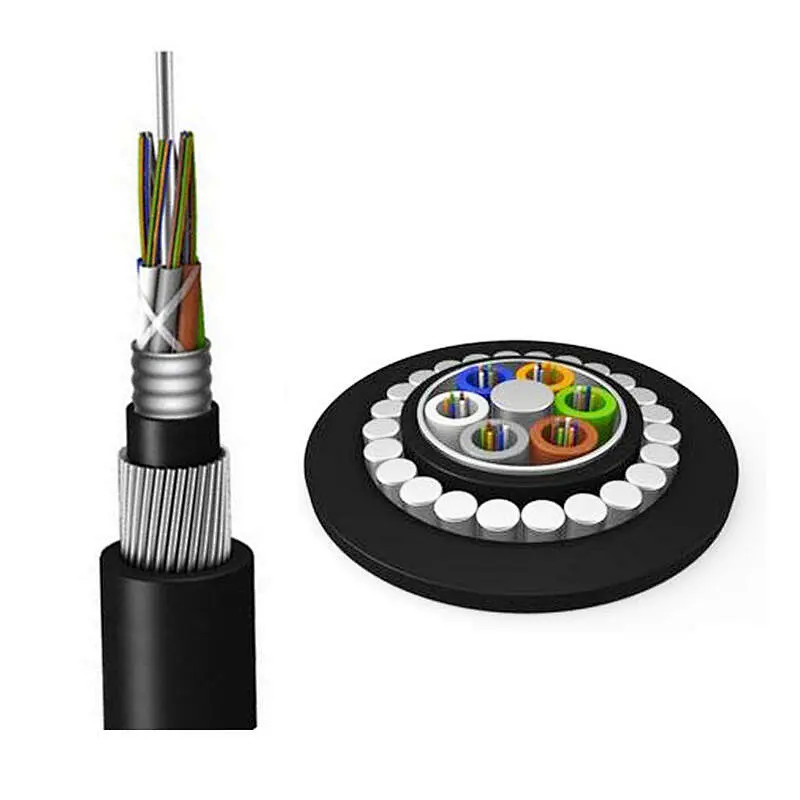

The underwater fiber cable GYTA33 features 2-72 fibers with central strength member (steel), jelly filled construction. The fiber is contained in loose tubes with PP filler (when necessary), stranded with water blocking jelly, copolymer coated aluminum tape, PE inner sheath, and armored by a layer of steel wires with PE outer sheath. Uses G652D SM fiber with detailed specifications available upon request.
| Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile (N) Long/Short term | Crush (N) Long/Short term | Bending Radius (mm) Static/Dynamic |
|---|---|---|---|---|---|---|
| 2-30 | 1+5 | 12.8 | 268 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 32-36 | 1+6 | 13.2 | 287 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 38-60 | 1+5 | 13.9 | 318 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 62-72 | 1+6 | 14.2 | 334 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 74-84 | 1+7 | 15.1 | 363 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 86-96 | 1+8 | 15.8 | 387 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 98-108 | 1+9 | 16.6 | 437 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 110-120 | 1+10 | 17.2 | 465 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 122-132 | 1+11 | 18.3 | 558 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 134-144 | 1+12 | 18.9 | 583 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 146-216 | 1+6+12 | 18.4 | 503 | 4000/10000 | 3000/5000 | 12.5D/25D |
| 218-288 | 1+9+15 | 20.5 | 600 | 4000/10000 | 3000/5000 | 12.5D/25D |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm/1550nm) | μm | 9.2±0.4 / 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) at various wavelengths | dB/km | 1310nm: ≤0.35 1550nm: ≤0.21 1380nm: ≤0.35 1625nm: ≤0.24 |
| 10 | Attenuation and wavelength variation | dB/km | 1310nm: ≤0.04 1550nm: ≤0.03 1480-1580nm: ≤0.05 |
| 11 | Dispersion at various wavelengths | ps/(nm.km) | 1288-1339nm: ≥-3.5, ≤3.5 1271-1360nm: ≥-5.3, ≤5.3 1480-1580nm: ≤20 1550nm: ≤18 |
| 12 | Zero dispersion wavelength | nm | 1300-1324 |
| 13 | Zero dispersion slope | ps/(nm²•km) | ≤0.092 |
| 14 | Typical value | ps/(nm²•km) | 0.04 |
| 15 | Largest individual fiber | Ps/√km | 0.2 |
| 16 | Link design values | Ps/√km | 0.1 |
| 17 | Two way average | 1310nm-1550 | ≤0.01dB |
