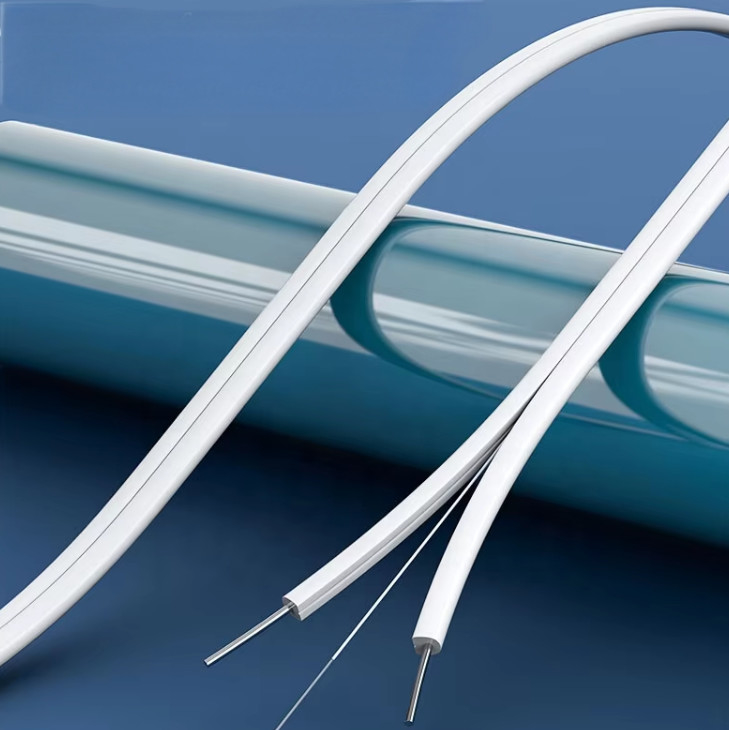

Name: FTTH Drop Cable GJXH-4G657A Indoor 1-4 Fibers LSZH Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GJXH-4G657A
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GJXH-4G657A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 1000km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Optical FTTH Drop Cable, G652D FTTH Drop Cable, FTTH Drop Cable 4CORE


MODEL:	GJXH-4G657A	Applications:	Indoor Ftth
Steel:	0.45mm	Jacket:	White Or Black
Fiber Count:	1-4 Fibers	Cable Weight:	20KG±1KG
Construction:	2pcs Steels OR FRP

MODEL:	GJXH-4G657A
Applications:	Indoor Ftth
Steel:	0.45mm
Jacket:	White Or Black
Fiber Count:	1-4 Fibers
Cable Weight:	20KG±1KG
Construction:	2pcs Steels OR FRP

FTTH Drop Cable GJXH-4G657A Indoor 1-4 Fibers LSZH Jacket

Optical FTTH Drop Cable Ftth To Home G652D G657A Gjxh GJFXH GJYXCH 1FO 4CORE

Product Specifications

Attribute	Value
MODEL	GJXH-4G657A
Applications	indoor ftth
Steel	0.45mm
Jacket	white or black
Fiber Count	1-4 fibers
Cable Weight	20KG±1KG
Construction	2pcs steels OR FRP

Product Overview

FTTH DROP Fiber Optic CABLE Indoor Ftth To Home Cable Drop Optical Fibers G652D G657A Gjxh GJFXH GJYXCH 1FO 4CORE

This specification covers the general requirements and performance of cable for FTTH, including optical characteristics, mechanical characteristics, and geometrical characteristics.

Key Features

UV proof LSZH cable jacket, durable
Fiber cores protected by FRP or Steel wires
G652D, or G657 A1/A2 fiber core options
Apply in outdoor, indoor and drain system ftth line distribution
Good tensile and crush load
Fire resistant protection
Competitive price

Cable Structure

STEEL WIRE
FIBER
LSZH JACKET

Diameter of cable: (2.0±0.2)X(5.0±0.2)mm
Type fiber: Singlemode G.657A
2KM/PLYWOOD REEL
REEL SIZE: 40*40*37cm
G.W.: 42KG/REEL 2KM/REEL
20KG/KM

Phosphating steel wire: 1 *1.0 mm
Phosphating steel wire: 2*0.45 mm

Technical Specifications

Cable Type	Fiber Count	Cable Size mm	Cable Weight Kg/km	Tensile Strength Long/Short term N
GJXH-1	1	2.0*3.0±0.2	9.0	40/80
GJXH-2	2	2.0*3.0±0.2	9.0	40/80
GJXH-4	4	2.0*3.0±0.2	9.0	40/80
GJXH-6	6	2.0*3.0±0.2	9.0	40/80
GJXH-8	8	2.5*3.5±0.2	11.0	40/80
GJXH-12	12	2.5*3.5±0.2	11.0	40/80

Item	Unit	Specification
Fiber Type		G652D
Mode field Diameter	1310nm μm	9.2±0.4
	1550nm μm	10.4±0.8
Cladding diameter	μm	125.0±0.1
Cladding non-circularity	%	≤1.0
Core/cladding concentricity error	μm	≤0.5
Coating diameter	μm	245±7
Coating/cladding concentricity error	μm	≤12
Cable cut-off wavelength	μm	≤1260
Attenuation Coefficient	1310nm db/km	≤0.36
	1550nm db/km	≤0.22
Proof stress level	kpsi	≥100

Note: Other parameters meet standard ITU-T G.652

Manufacturer Information

Ordering Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
