GYTC8S Aerial Figure 8 Fiber Optic Cable 2-24 Cores

Name: GYTC8S Aerial Figure 8 Fiber Optic Cable 2-24 Cores
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Overhead Aerial Figure 8 Fiber Optic Cable, 24 Cores Fiber Optic Cable, Overhead Aerial Fiber Optic Cable


Type:	GYTC8S	Aromored:	Steel Tape
Out Sheath Material:	PE	Installation Method:	Aerial
Operating Temperature:	-40°C To +70°C	Application:	Outdoor Aerial Installation

Type:	GYTC8S
Aromored:	Steel Tape
Out Sheath Material:	PE
Installation Method:	Aerial
Operating Temperature:	-40°C To +70°C
Application:	Outdoor Aerial Installation

GYTC8S Aerial Figure 8 Fiber Optic Cable 2-24 Cores

GYTC8S Aerial Figure 8 Fiber Optic Cable (2-24 Cores)

Attribute	Value
Type	GYTC8S
Armored	Steel tape
Outer Sheath Material	PE
Installation Method	Aerial
Operating Temperature	-40°C to +70°C
Application	Outdoor aerial installation

Product Overview

The GYTC8S is a high-quality standalone fiber optic cable designed for outdoor aerial installations. Its robust construction features excellent moisture resistance and crush resistance, making it suitable for both duct and underground deployment. The cable's structural integrity comes from a metallic strength member of helically wound wires, protected by a polyethylene sheath in an octagonal configuration.

Enhanced with corrugated steel tape and an external polyethylene layer, the cable offers superior crush and bullet resistance. A central steel-wire member increases tensile strength, while the loose tube and water-blocking system provide additional protection.

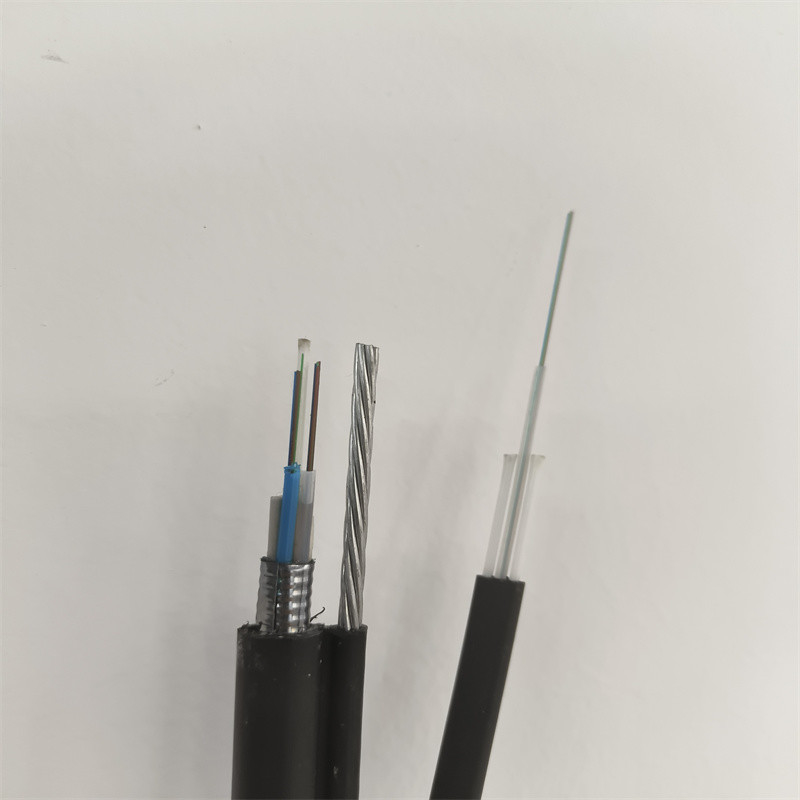

Construction Details

The Figure 8 style non-armoured fiber optic cable consists of:

Stranded loose tube for fiber protection
Central steel wire for added strength
Core filler compound to maintain circular form
Structural support fillers
Phosphating or galvanized steel wire for corrosion resistance

Technical Specifications

No. of cable	12	24	48
Fiber Model	G.652D
Design (Strength Member+Tube&Filler)	1+5
Loose Tube Material	PBT
Diameter (±0.06)mm	1.9	1.9	1.9
Thickness (±0.03)mm	0.25	0.25	0.30
Max.Core NO./Tube	6	6	12
Filler Rope Material	LDPE
Diameter (±0.05)mm	1.65	1.65	1.9
NO.	3	1	1
Armoring Material	Steel tape
Thickness(+0.03)mm	0.20
Outer Sheath① Material	MDPE
Thickness (±0.2)mm	1.5
Outer Sheath② Material	MDPE

Manufacturer Information

Frequently Asked Questions

Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals.

How do we guarantee quality?

Pre-production samples before mass production
Final inspection before shipment

Can you send products to my country?

Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.

What services do we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
