Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD
Certification: ISO/CE/ROSH
Model Number: GYXTW 8b1.3 +RVV
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
ITEM NO.:
|
GYTXW 8B1.3 +RVV
|
Cooper Wire:
|
1.5 Mm²/1mm²
|
Jacket Color:
|
Black Or Customized
|
Jacket Material:
|
PE
|
Armored Type:
|
Steel Tape
|
Strength Member:
|
Steel Wires
|
|
ITEM NO.:
|
GYTXW 8B1.3 +RVV
|
|
Cooper Wire:
|
1.5 Mm²/1mm²
|
|
Jacket Color:
|
Black Or Customized
|
|
Jacket Material:
|
PE
|
|
Armored Type:
|
Steel Tape
|
|
Strength Member:
|
Steel Wires
|
| Attribute | Value |
|---|---|
| ITEM NO. | GYTXW 8B1.3 +RVV |
| Cooper wire | 1.5 mm²/1mm² |
| Jacket Color | Black or customized |
| Jacket Material | PE |
| Armored Type | Steel Tape |
| Strength member | Steel wires |
Composite Hybrid Optical Fiber Cable Direct Buried Single Mode Photoelectric Composite Fiber Optic Cable

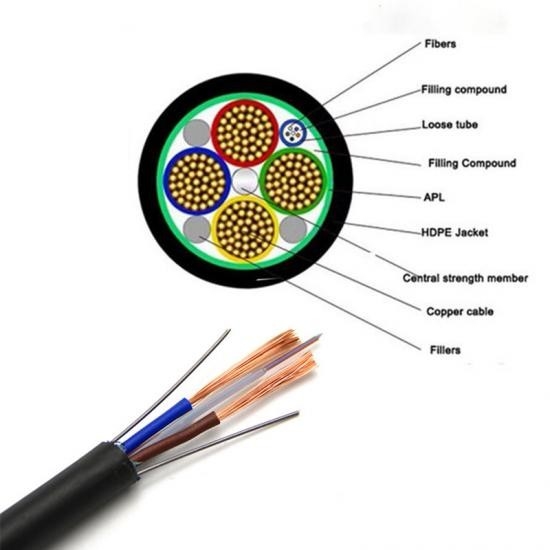

The structure of opts-electric hybrid cable inserts a 250μm fiber into a loose tube made of high-modulus material, with the loose tube filled with waterproof compound. The cable core center features FRP or metal reinforcement (some structures require a PE underlay). Wires and loose tubes are twisted around the central reinforcing core into a compact, round core with water blocking filler in gaps. The double-coated plastic strip (PSP) is longitudinally extruded with polyethylene or low-smoke halogen-free (LSZH) jacket.
| Copper Specifications | |||
|---|---|---|---|
| RVV2*2.5MM | RVV-4*2.5mm | RVV-6*2.5mm | RVV-8*2.5mm |
| 347 | 382 | 502 | 628 |
| Fiber Count | Structure | Fibers per Tube | Loose Tube Diameter | Conductor Cross Section | Cable Diameter | Cable Weight |
|---|---|---|---|---|---|---|
| 2-18 | 1 | 2-18 | 1.8±0.1 | 1 | 9.4 | 92 |
| 20-24 | 1 | 20-24 | 1.9±0.1 | 1 | 10.4 | 106 |
| 2-18 | 1 | 2-18 | 1.8±0.1 | 1.5 | 10.8 | 119 |
| 20-24 | 1 | 20-24 | 1.8±0.1 | 1.5 | 11.3 | 127 |
| Item | Unit | Specification |
|---|---|---|
| Fiber Type | G652D | |
| Mode Field Diameter | 1310nm (μm) | 9.2±0.4 |
| 1550nm (μm) | 10.4±0.8 | |
| Cladding Diameter | μm | 125.0±0.1 |
| Cladding Non-circularity | % | ≤1.0 |
| Core/Cladding Concentricity Error | μm | ≤0.5 |
| Coating Diameter | μm | 245±7 |
| Coating/Cladding Concentricity Error | μm | ≤12 |
| Cable Cut-off Wavelength | μm | ≤1260 |
| Attenuation Coefficient | 1310nm (db/km) | ≤0.36 |
| 1550nm (db/km) | ≤0.22 | |
| Proof Stress Level | kpsi | ≥100 |
Note: Other parameters meet standard ITU-T G.652
COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
*The marking is printed every 1 meter
**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom markings available according to client specifications.
